Tyco Fire Sprinklers

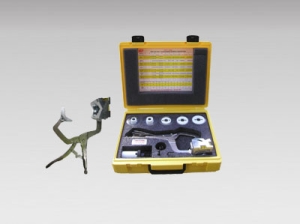

Pilot Clamp
- Pilot clamp with integrated levels
- Quick and easy drilling a hole in pipe up to 2” in diameter
- Interchangeable hole saw guides (1’ through 2”)
- Lenox® Bi metal hole saws (6)
- Arbours and pilot bits
- Heavy duty metal carrying case
| Part# | Description |
|---|---|
| 99200 | Pilot Clamp with metal case |

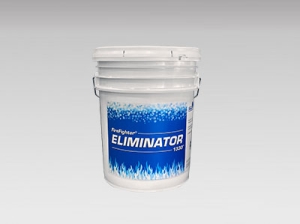

Eliminator Premixed Antifreeze
- Antifreeze premixed for wet sprinkler systems
- Non-toxic solution
- cULus listed and FBC Compatible for sprinkler systems
- Can be used on all types of sprinkler piping
- With MIC preventative and corrosion inhibitors
| Part# | Description |
|---|---|
| 49005 | Eliminator 1330 antifreeze 5 gallon (19 litre) pail |
Additional Files
Click on the buttons inside the tabbed menu:

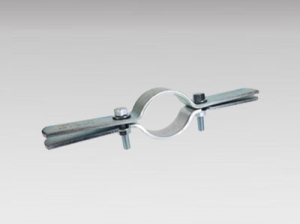

Riser clamp
- Riser clamp to support vertical pipe
- Sold in box quantity only
- Carbon steel, black, or zinc-plated
| Size | Black | Zinc | Bolt Dia. | Meterial | Max Load (LBS) |
|---|---|---|---|---|---|
| 1/2"IPS | 1095012 | 1095012G | 3/8” | 11/64 x 1 | 220 |
| 3/4" IPS | 1095034 | 1095034G | 3/8” | 11/64 x 1 | 220 |
| 1" IPS | 1095100 | 1095100G | 3/8” | 11/64 x 1 | 220 |
| -1/2" IPS | 1095112 | 1095112G | 3/8” | 11/64 x 1 | 250 |
| 2" IPS | 1095200 | 1095200G | 3/8” | 11/64 x 1 | 300 |
| 3" IPS | 1095300 | 1095300G | 3/8” | 1/4 x 1 | 500 |
| 4" IPS | 1095400 | 1095400G | 1/2” | 1/4 x 1 | 750 |
| 6" IPS | 1095600 | 1095600G | 1/2” | 1/4 x 1 1/2 | 1600 |
| 8" IPS | 1095800 | 1095800G | 5/8” | 3/8 x 1 1/2 | 2500 |
| 10" IPS | 10951000 | 10951000G | 5/8” | 3/8 x 2 | 2500 |

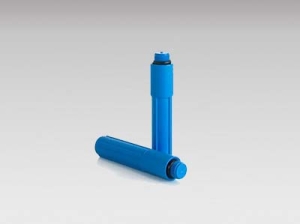

Rough in Test Plug
E/z Rough In Test Plug
Bouchon de test pour installation de douche
- performs your test before shower installation
- threads into wing back 90°
- reusable
- pour effectuer des tests avant l’installation de votre douche
- aile arrière en angle de 90°
- réutilisable
| Part# | Description |
|---|---|
| 4760 | shower test nipple / mamelon de test pour douche |
Additional Files / Fichiers supplémentaires
Click on the buttons inside the tabbed menu:
Other Documents

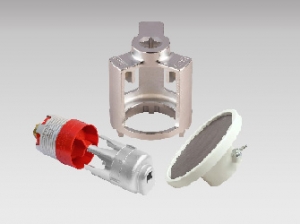

Head Wrench
Wrenches for the installation of Senju sprinkler heads
| Part# | Model | Description |
|---|---|---|

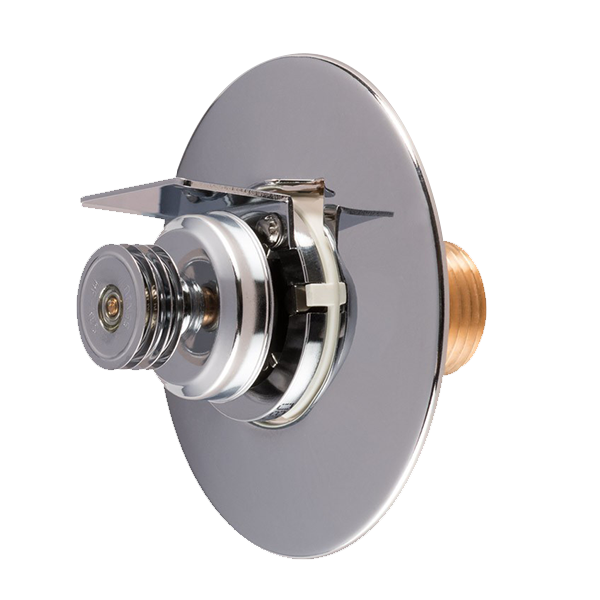

| S003 - 0200 | HF-H | For Flush Horizontal Heads |
| S003 - 0300 | VC - H | For Concealed CN and ZN Heads |
| S003 - 0400 | NR-H | Wrench for RC concealed heads |
| S003 - 0401 | NR | Plastic Socket for RC Concealed |
| S003 - 0500 | FR - H | For Recessed Pendant |
| S003 - 0501 | FR - H - II | For Recessed Pendant and HSW Heads |
| S003 - 0510 | FR-S | Spanner Wrench |
| S003 - 1000 | RC – M | Magnetic Cover removal tool |
| S003 - 3000 | RC - CR | Cap Removal tool for concealed head |
Additional Files
Click on the buttons inside the tabbed menu:
Techanical Informaiton
Other Documents

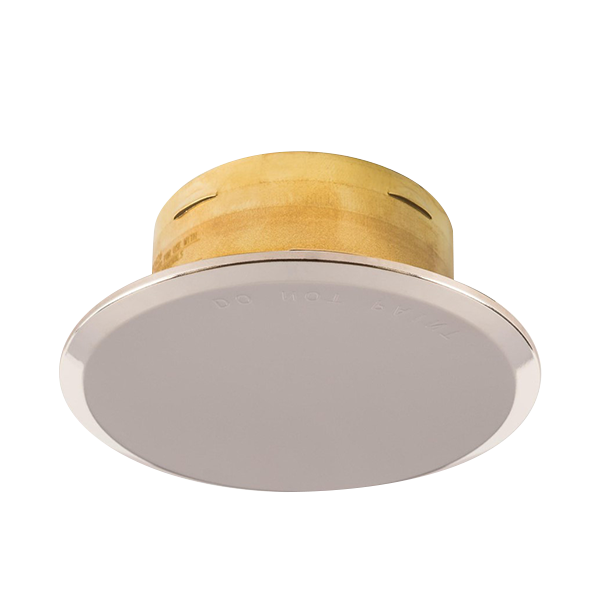

Cover Plates
Concealed Sprinkler Cover Plates
- White plate stock round and square.
- Custom colours and sizes available
| RC Cover Plates Round 3 1/4" Diameter | |||
|---|---|---|---|
| White | Mirror | Black | |
| 140 F | S004-0611 | S004-0621 | S004 - 0631 |
| 162 F | S004-0612 | ||
| Custom | S004-0601 | ||
| RC Cover Plates Square 2 5/8" | |
|---|---|
| White | |
| 140 | S004-0711 |
| Custom | S004-0701 |
| RC Cover Plates Round 2 5/8" Diameter | |||
|---|---|---|---|
| White | Mirror | Black | |
| 140 F | S004-0511 | Call | Call |
| 162F | S004-0512 | ||
Additional Files
Click on the buttons inside the tabbed menu:
Techanical Informaiton
Other Documents

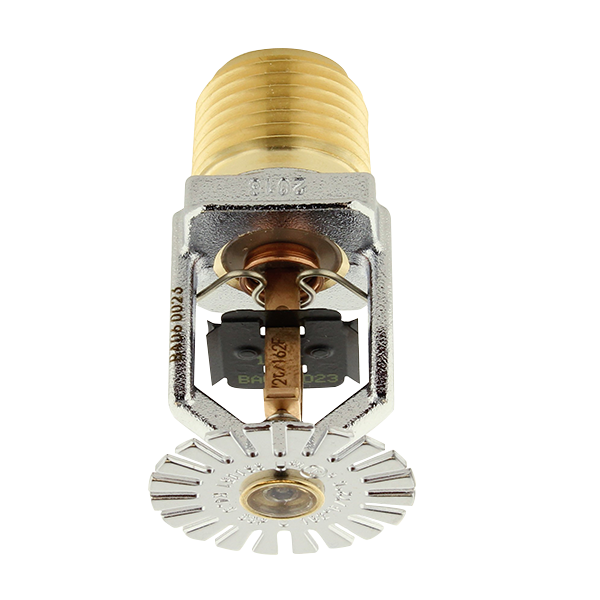

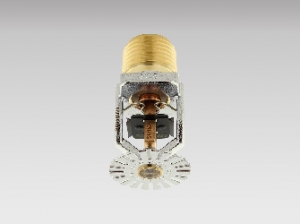

Senju Sprinkler Heads 5.6k
Pendent, Sidewall or Upright QR Sprinklers
K-Factor K=5.6
- Thread Size1/2" NPT
- Maximum Working Pressure175psi (12.1 bar)
- Temperature Ratings162°F/72°C 205°F/96°C 286°F/141°C
- Overall Length2-13/64" (56mm)
Chrome, White, Black and Brass finishes available
| Pendent QR Heads 5.6K Part # S 2551- | |||
|---|---|---|---|
| Temperature | 162F / 72C | 205F / 96C | 286F / 141C |
| White | 5011 | 5012 | 5013 |
| Chrome | 5021 | 5022 | 5023 |
| Black | 5031 | 5032 | 5071 |
| Brass | 5071 | 5073 | XXXX |
| Upright QR Heads 5.6K Part # S 2552- | |||
|---|---|---|---|
| Temperature | 162F / 72C | 205F / 96C | 286F / 141C |
| Brass | 5571 | 5572 | 5573 |
| Horizontal Sidewall QR Heads 5.6K Part # S 2553- | |||
|---|---|---|---|
| Temperature | 162F / 72C | 205F / 96C | 286F / 141C |
| White | 5411 | 5412 | 5413 |
| Chrome | 5421 | 5422 | 5423 |
Additional Files
Click on the buttons inside the tabbed menu:
Other Documents

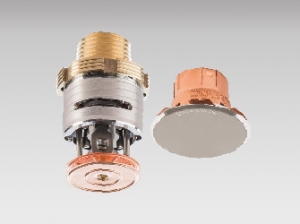

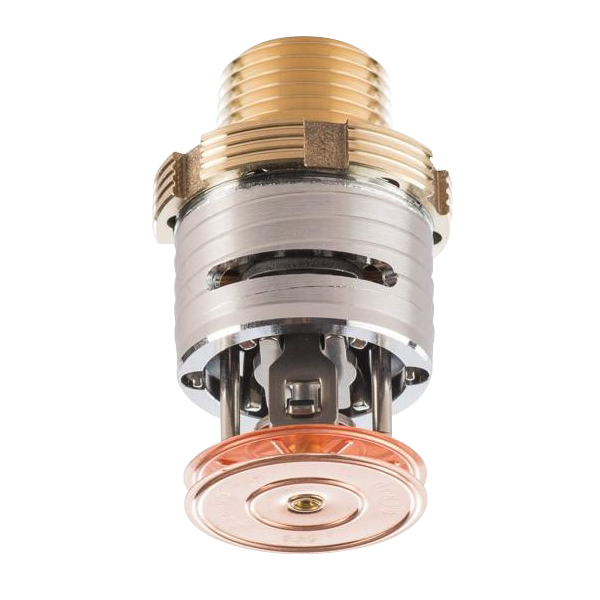

CN Heads
Senju Concealed Heads Compact Conceal Models
K Factor K=5.6 (80.0) Quick Response
Thread Size 1/2" NPT
Temperature162℉ / 72℃ Sprinkler with 140℉ / 60℃ Cover Plate
Vertical Adjustment: 3/8 inch (9.5 mm)
Compact Concealed Head using a 2 3/8” cover plate. Size matters and smaller can be better!
| Part# | K Factor | Type | Temp |
|---|---|---|---|
| S9521 - 0801 | 5.6K | QR | 162F / 72C |
| S9521 - 0802 | 5.6K | QR | 205F / 96C |

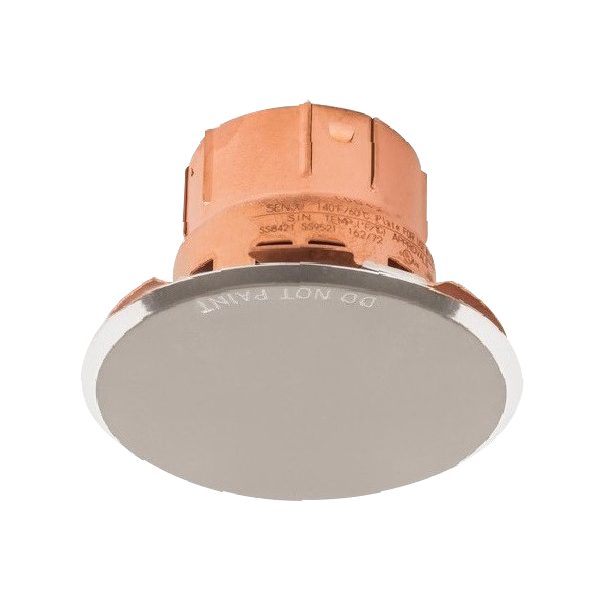

| CN Cover Plates Round 2 3/8" Diameter | ||
|---|---|---|
| White | Mirror | |
| 140F | S004-0311 | Call |
| 162F | S004-0312 | |
Additional Files
Click on the buttons inside the tabbed menu:
Other Documents

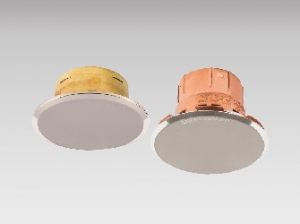

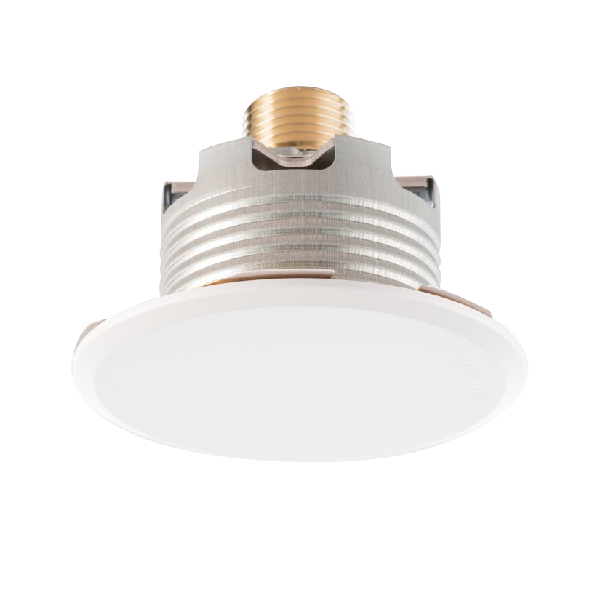

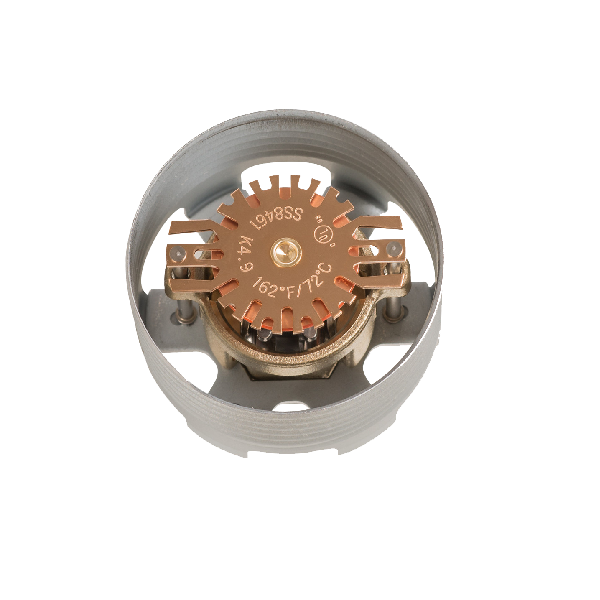

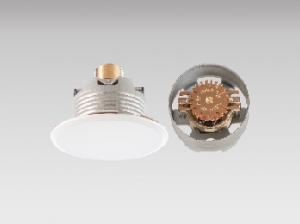

Senju Concealed Heads
Quick Response Concealed Pendent Sprinklers
- 162°F / 72°C Sprinkler with 140°F / 60°C Cover Plate
- 205°F / 96°C Sprinkler with 162°F / 72°C Cover Plate
- Solder type
- Ideal for use in wet pipe residential sprinkler systems per NFPA 13D, 13R, and 13.
- Standard cover plate is 3-1/4” (83mm) in diameter
- Smaller 2-5/8” (68mm) cover plate and 2-5/8” (68mm) square cover plate are also available
- Cover plates are available in 11 standard finishes and unlimited custom color and pattern finishes
| Residential Heads - K factor | ||
|---|---|---|
| Temperature | 5.6 K | 5.6 K (EC) |
| 162F | S9561-1001 | S3561-1201 |
| 205F | S9561-1002 | |
