Body Only
- Straight or angled bodies
- Double clapper design
- ULC approved
| Part# | Type |
|---|---|
| 70229-1 | Straight |
| 70229-2 | Angle |

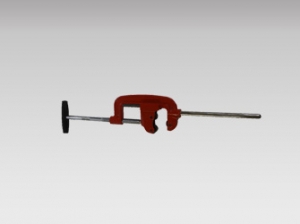

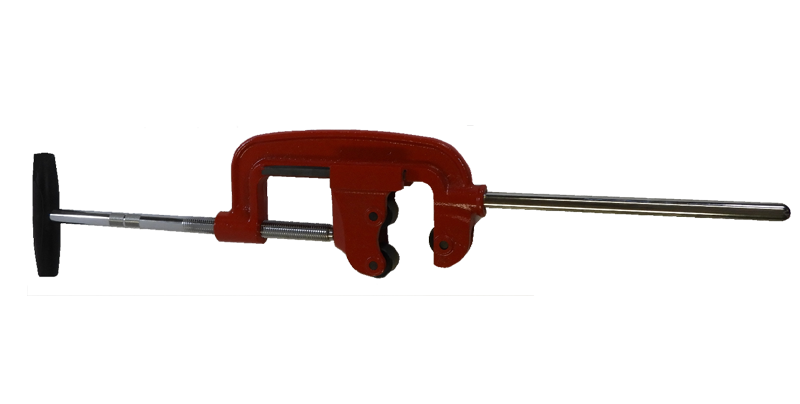

Pipe Cutter Large
- Large cutter for pipe sizes from 2” to 4”
- For cutting steel and cast iron pipes
- Wide rollers for accurate cuts
- Sturdy bolts to prevent twisting
- Fine threaded shaft for pressure adjustment
- Burr free cuts
| Part# | Description |
|---|---|
| MP4000 | Cutter 2” to 4” |
| MP4004 | Replacement cutting wheel |

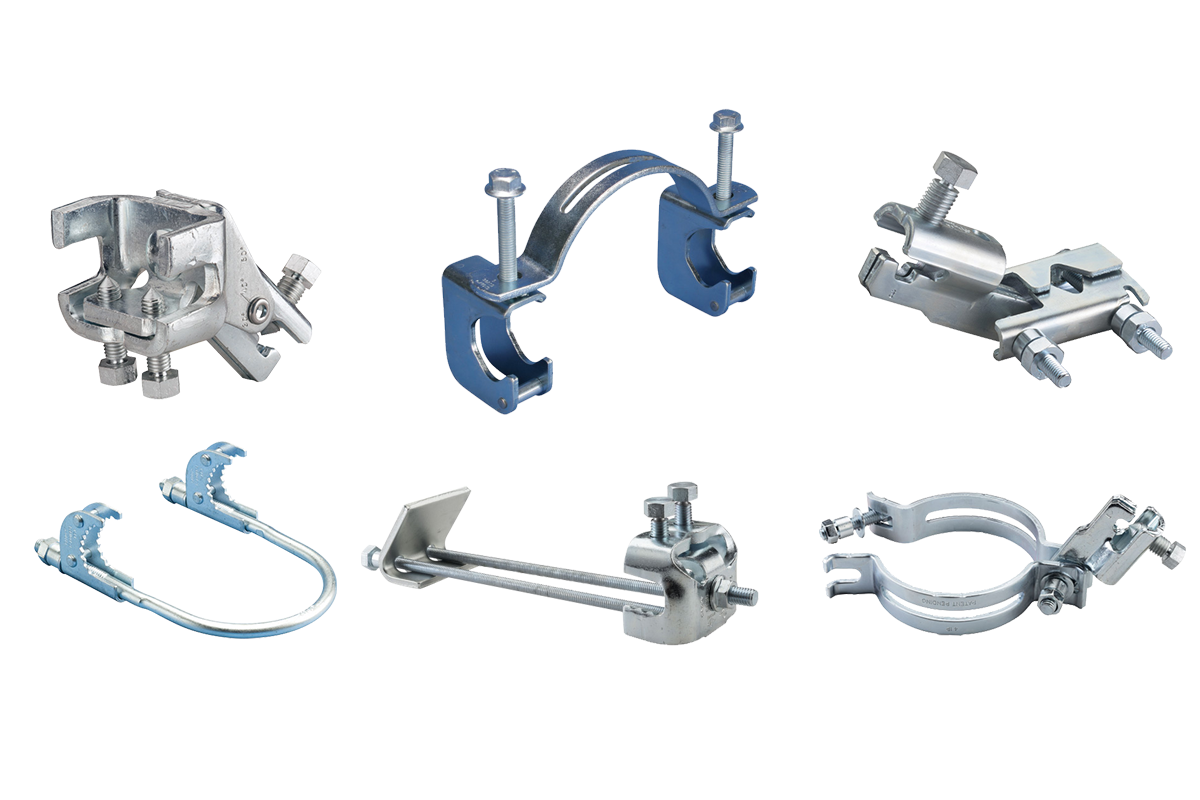

Seismic Bracing Panel
LynCar offers a full line of seismic bracing items from Erico (nVent CADDY). Many codes now include the requirement of seismic bracing for fire sprinkler systems. With the many changes in this product grouping, and the engineering design requirements, please contact you LynCar representative for details and review the following links to help you get started with your seismic bracing needs.
Click here for link to more seismic information
Additional Files
Click on the buttons inside the tabbed menu:
Techanical Informaiton

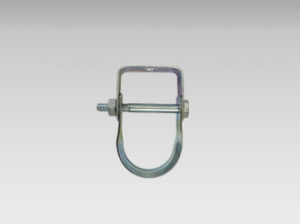

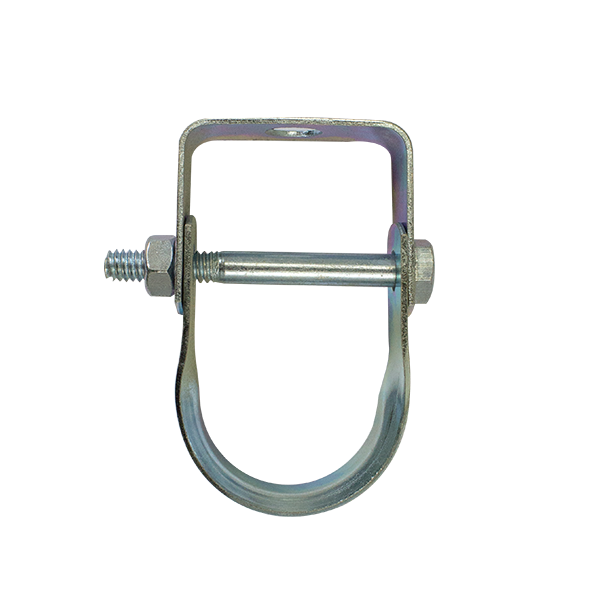

Hanger – Clevis
- Recommended for the suspension of stationary non-insulated pipe lines
- 1" to 8" sizes stocked, other sizes available
- Carbon Steel, plated Zinc
| Part# | Description |
|---|---|
| 1093100 | 1" Clevis pipe size |
| 1093114 | 1 1/4" Clevis pipe size |
| 1093112 | 1 1/2" Clevis pipe size |
| 1093200 | 2" Clevis pipe size |
| 1093212 | 2 1/2" Clevis pipe size |
| 1093300 | 3" Clevis pipe size |
| 1093400 | 4" Clevis pipe size |
| 1093600 | 6" Clevis pipe size |
| 1093800 | 8" Clevis pipe size |
Additional Files
Click on the buttons inside the tabbed menu:
Sales Sheets
Other Documents

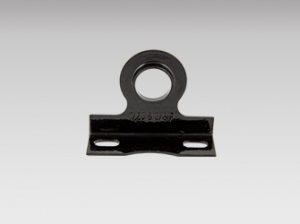

Standard Pipe Stays
- Made of carbon steel & epoxy coated
- Used in water, heat & gas line
- Copper & iron pipe sizes
| Standard part# | Copper | IPS | Measurement of “A” |
|---|---|---|---|
| 1378011 | 1/2” | 3/8” | 1-7/16" |
| 1378021 | 3/4” | 1/2” | 1-7/16" |
| 1378031 | 1" 3/4" | 3/4” | 1-5/8" |
| 1378080 | 1-1/4" | 1” | 1-5/8" |
| 1378082 | 1-1/2" | 1-1/4" | 2-1/2" |
| 1378020 | N/A | 1-1/2" | 2-13/16" |
| 1378098 | N/A | 2" | 2-15/16" |
| 1378092 | N/A | 2" | 2-13/16" |

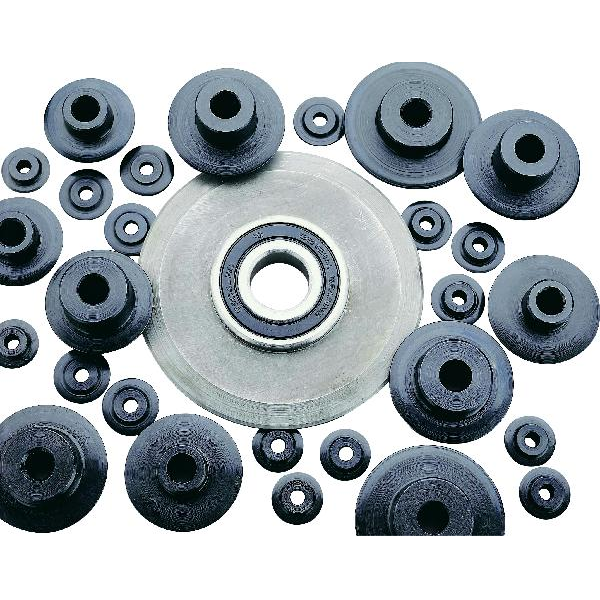

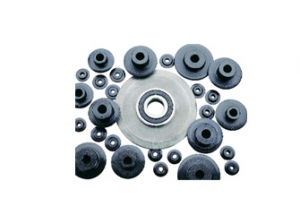

Replacement Cutting Wheels
- Replacement cutting wheels for your Ridgid or Collins equipment
| Part# | Ridge Tool# | Ridge Tool Cutter | Application |
|---|---|---|---|
| BT01100 | 33100 | 1, 2, 42, 535, 300, 1A, 3A, 42A, 201, 202, 360, 820, 364 |
Steel, ductile iron thin |
| BT01000 | 33105 | Steel, ductile iron heavy duty | |
| BT01200 | 33110 | Steel & stainless steel heavy duty | |
| BT01300 | 33115 | Cast iron | |
| BT04200 | 33130 | 3, 4, 3S, 4S, 44, 44S, 466, 468, 472 |
Stainless Steel |
| BT04100 | 33120 | Steel, ductile iron thin | |
| BT04000 | 33125 | Steel & stainless steel heavy duty |

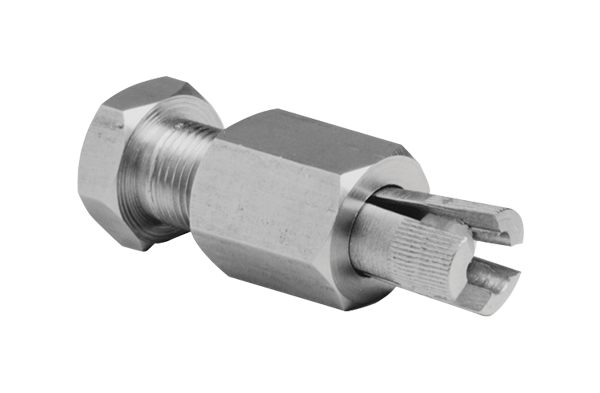

Internal Nipple Wrench - Deluxe
- Designed to grip internally the smallest area of the nipple
- Removes broken nipple threads form fittings
- Loosens and tightens nipples
| Part# | Size |
|---|---|
| 4511 | 1/2" |
| 4512 | 3/4" |
| 4513 | 1" |

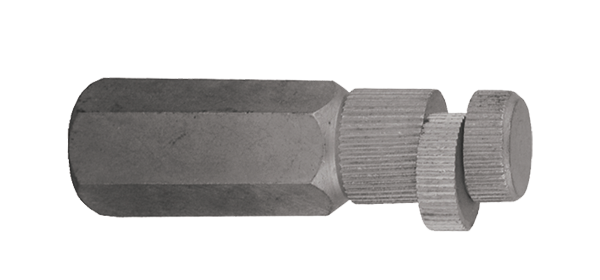

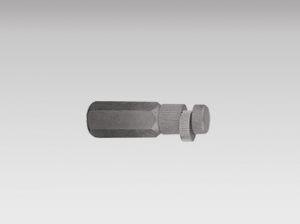

Internal Nipple Wrench
- Cam type
- Removes or inserts nipple
- Heat treated and plated
| Part# | Description |
|---|---|
| 4531 | 1/2" |
| 4532 | 3/4" |
| 4533 | 1" |

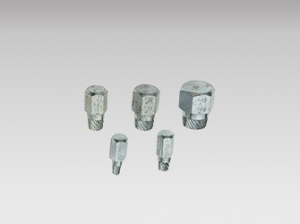

Extractor - Kit
- extract broken bolts quickly
- carded for display
- 5pcs 1/8", 1/4", 3/8", 1/2", 3/4"
| Part# | Description |
|---|---|
| 52501 | Plumber’s extractor kit / Trousse d’extraction du plombier |

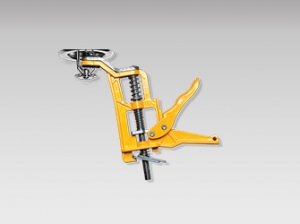

Shutgun Shut Off Tool
- To stop the flow of an activated sprinkler head
- Easy to use, one hand can insert the tool into the head
- Use on pendant, upright, broken, concealed, institutional, and recessed style sprinklers
- Shutgun incorporates a fusible link that allows the sprinkler head to reactivate if a fire starts.
- For fire service or maintenance personnel to stop water damage from activated sprinklers
| Part# |
|---|
| 99SG1 |
