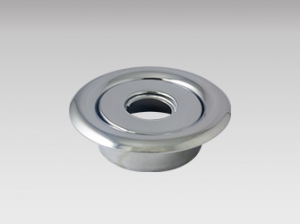

2 Piece Adjustable Pendant
- Triple chrome plated or baked powder enamel paint
- Adjustable from 2" to 3"
- Skirt and cup packaged separately for easy installation
- Weep hole in the cup for leak detection
| Part# | Finish | Size |
|---|---|---|
| 205250 | Chrome | 1/2" IPS |
| 205255 | White | 1/2" IPS |
| 205260 | Brass | 1/2" IPS |
| 205265 | Chrome | 3/4" IPS |
| 205270 | White | 3/4" IPS |

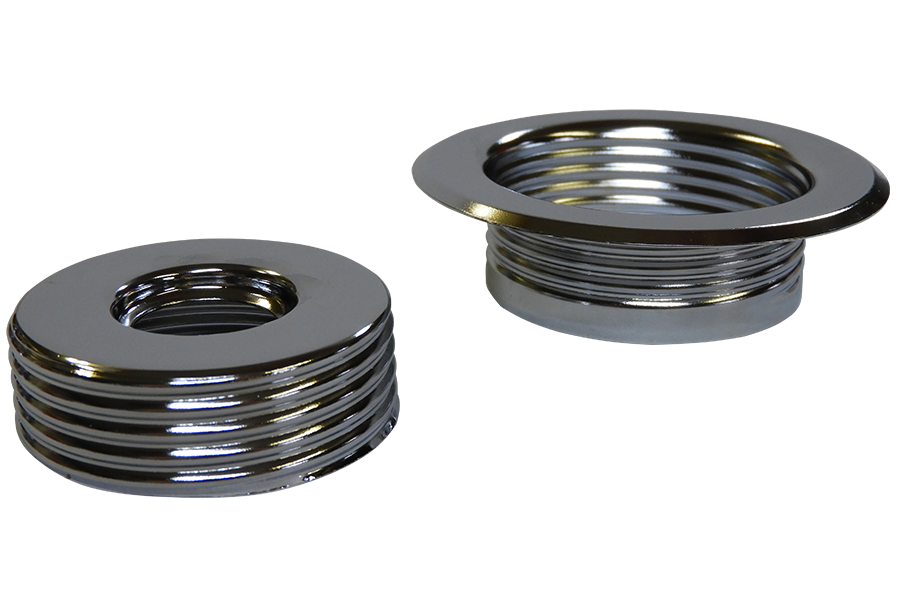

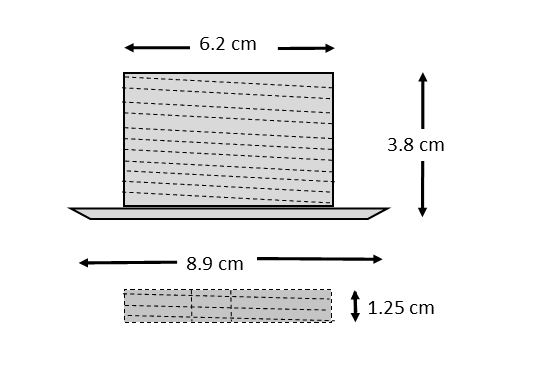

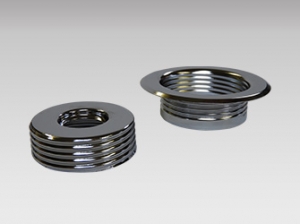

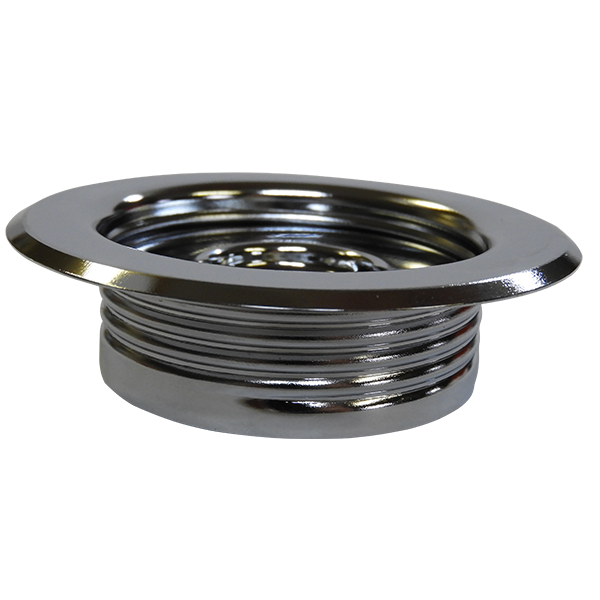

Recessed Threaded 2 pc Plate
- Threaded cup and skirt for minor adjustments
- Can adjust to pipe or ceiling pitch
- Can be removed and reinstalled
- Threaded for high vibration areas
- Threaded skirt with 1/2" adjustment
- Chrome or white finish
| Part# | Finish | Size |
|---|---|---|
| 205213 | Chrome | 1/2" IPS |
| 205214 | White | 1/2" IPS |

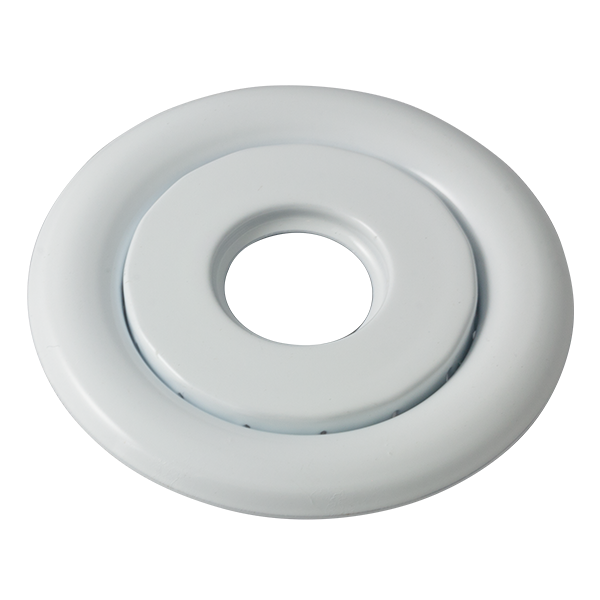

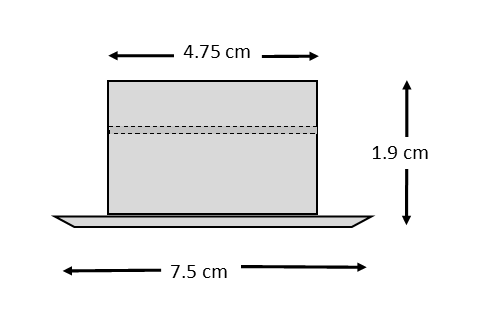

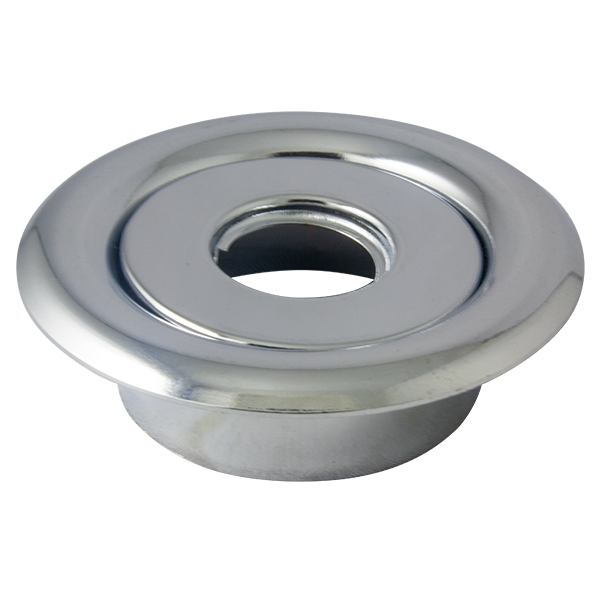

Recessed 2 pc Plate, Short Skirt
- Triple chrome plated or baked powder enamel paint
- 3/4" Skirt for 1/2" adjustment
- For use with residential sprinkler heads
- Weep hole in the cup for leak detection
- Cup and plate packaged separately for easy installation
| Part# | Finish | Size |
|---|---|---|
| 205226 | Chrome | 1/2" IPS |
| 205227 | White | 1/2" IPS |

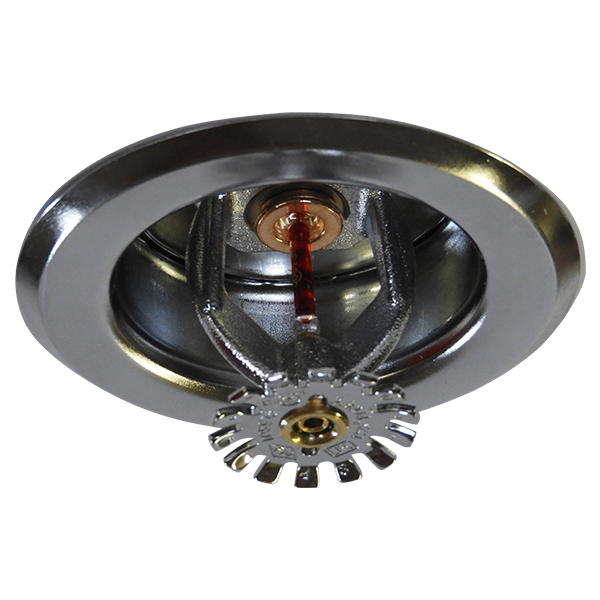

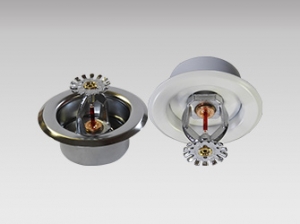

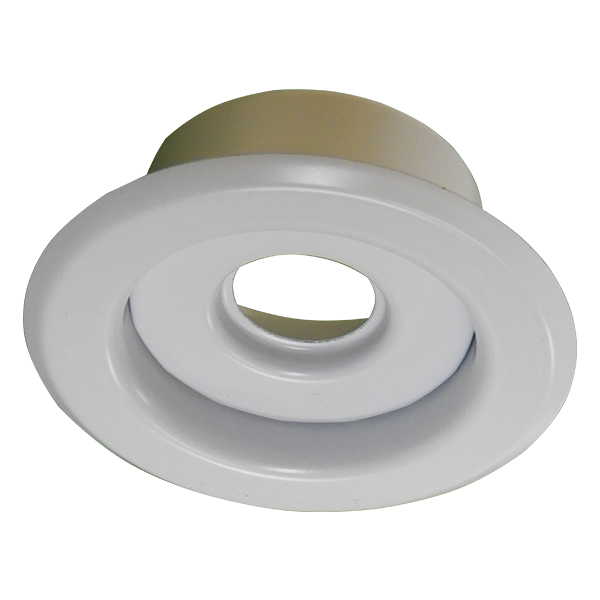

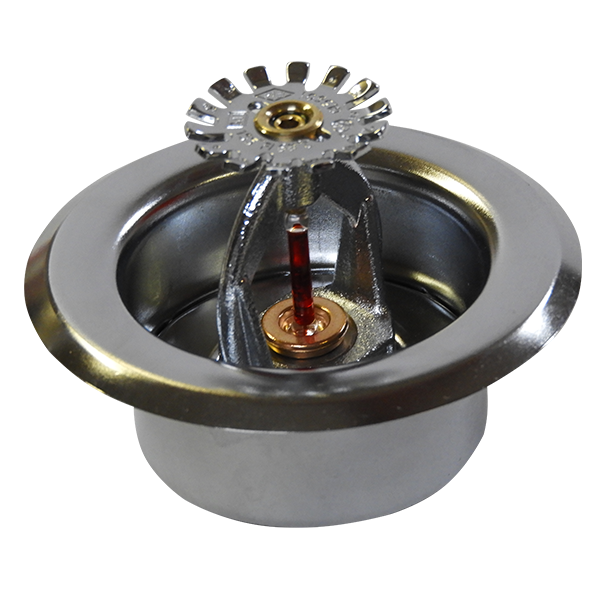

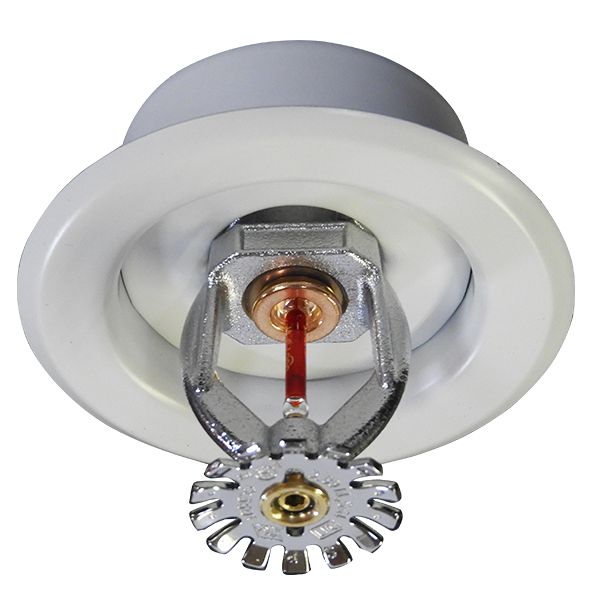

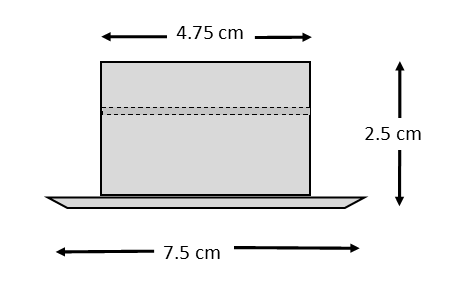

Recessed 2 pc Plate
- Triple chrome plated or baked powder enamel paint
- 1" Skirt for 3/4" adjustment
- Weep hole in the cup for leak detection
- Cup and plate packaged separately for easy installation
| Part# | Finish | Size |
|---|---|---|
| 205200 | Chrome | 1/2" IPS |
| 205210 | White | 1/2" IPS |
| 205205 | Brass | 1/2" IPS |
| 205215 | Chrome | 3/4" IPS |
| 205225 | White | 3/4" IPS |
| 205212 | Black | 1/2" IPS |
