Head - Storage
- Storage sprinkler for use in NFPA13 / CMDA Applications
- 3/4" IPS Heads 11.2 K Factor
- Several temperature ratings available
| Part# | Description |
|---|---|
| G1114 | Pendent |
| G1123 | Upright |
Additional Files
Click on the buttons inside the tabbed menu:
Sales Sheets
Other Documents

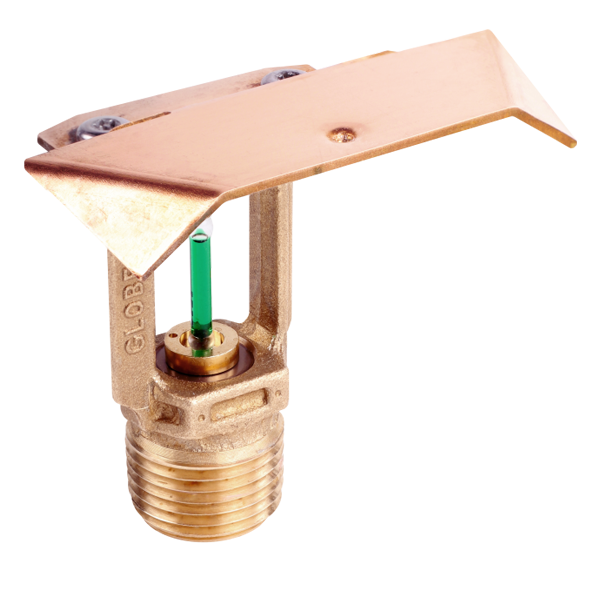

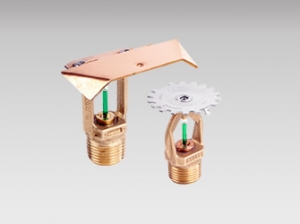

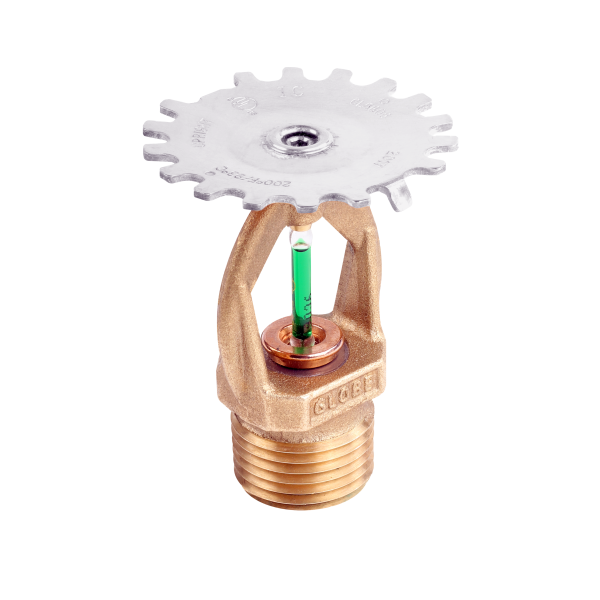

Head - Attic Sprinklers
- For light hazard concealed attic spaces
- Quick response sprinklers
- 1/2" IPS, 200⁰ F, Brass head 5.6 K factor
- 3/4" IPS, 200⁰ F, Brass head, 8.0 K factor
| Part# | Description | Size |
|---|---|---|
| G5620 | Single Side SS / RE | 1/2" IPS |
| G5621 | Double Sided SS/ DS | 1/2" IPS |
| G5623 | Single Side SS / GAP | 1/2" IPS |
| G8123 | Double Sided SS / BB79 | 3/4" IPS |
Additional Files
Click on the buttons inside the tabbed menu:
Sales Sheets
Other Documents

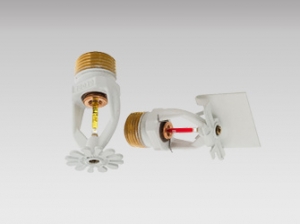

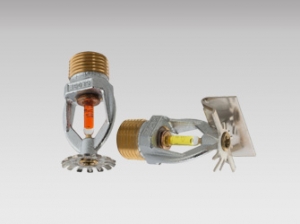

Head – Residential
- Residential Sprinklers for Fire Protection Service, UL 1626
- Temperature Rating -155°F (68°C), 175°F (79°C)
- Water working pressure rating – 175psi
- Specify temperature and finish
| Part# | Description | Size |
|---|---|---|
| G3010 | Pendent | 3 |
| G4110 | Pendent | 4.1 |
| G4710 | Pendent | 4.9 |
| G5610 | Pendent | 5.6 |
| G4231 | Sidewall | 4.2 |
| G4431 | Sidewall | 4.4 |
Additional Files
Click on the buttons inside the tabbed menu:
Sales Sheets
Other Documents

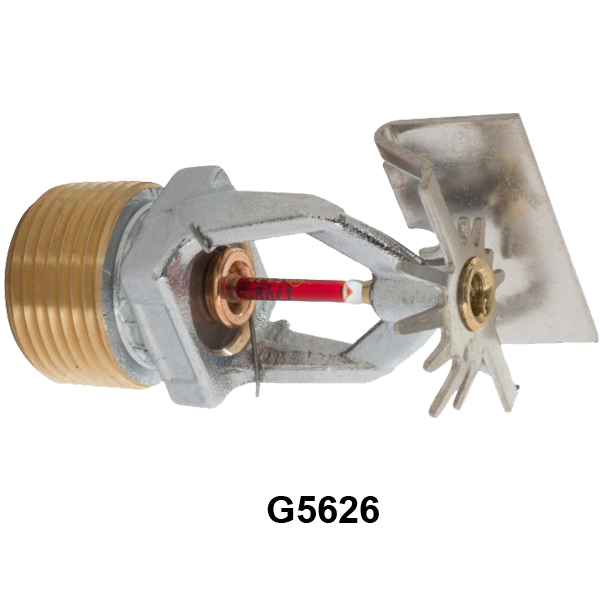

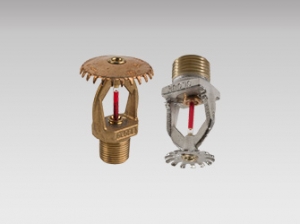

Head – Quick Response
- Temperature ratings from 155 degrees to 360 degrees
- 3mm glass bulb sprinklers 1/2” orifice
- Specify temperature and finish
| Part# | Description | Size |
|---|---|---|
| G5615 | Upright | 1/2" IPS |
| G5626 | Sidewall | 1/2" IPS |
| G5632 | Vertical S/W | 1/2" IPS |
| G5601 | Pendent | 1/2" IPS |
| G8118 | Upright | 3/4" IPS |
| G8127 | Sidewall | 3/4" IPS |
| G8128 | Vertical S/W | 3/4" IPS |
| G8106 | Pendent | 3/4" IPS |
Additional Files
Click on the buttons inside the tabbed menu:
Sales Sheets
Other Documents

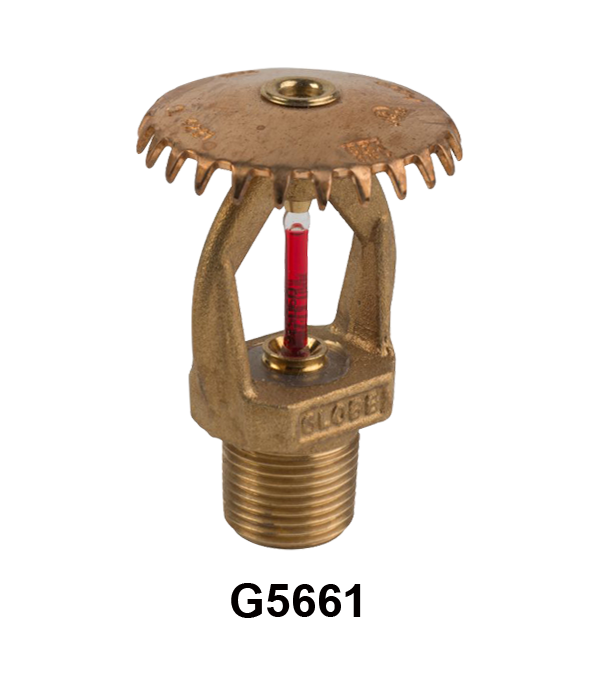

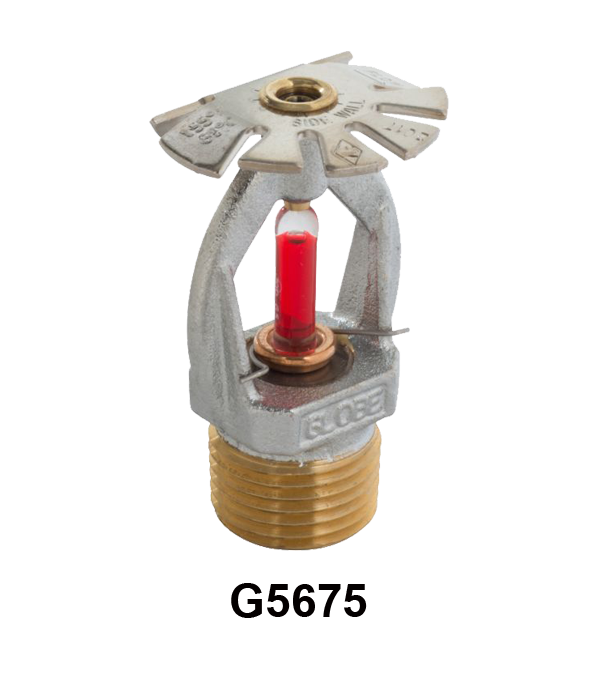

Head – Standard Response
- Temperature ratings from 155 degrees to 360 degrees
- 5mm glass bulb sprinklers 1/2” orifice
- Specify temperature and finish
| Part# | Description | Size |
|---|---|---|
| G5661 | Upright | 1/2" IPS |
| G5670 | Sidewall | 1/2" IPS |
| G5675 | Vertical S/W | 1/2" IPS |
| G5651 | Pendent | 1/2" IPS |
| G8164 | Upright | 3/4" IPS |
| G8171 | Sidewall | 3/4" IPS |
| G8176 | Vertical S/W | 3/4" IPS |
| G8156 | Pendent | 3/4" IPS |
Additional Files
Click on the buttons inside the tabbed menu:
Sales Sheets
Other Documents

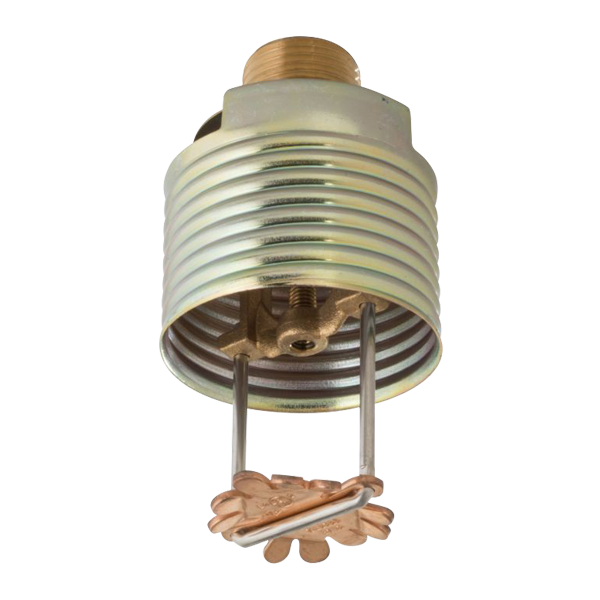

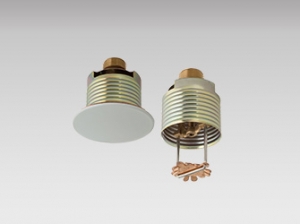

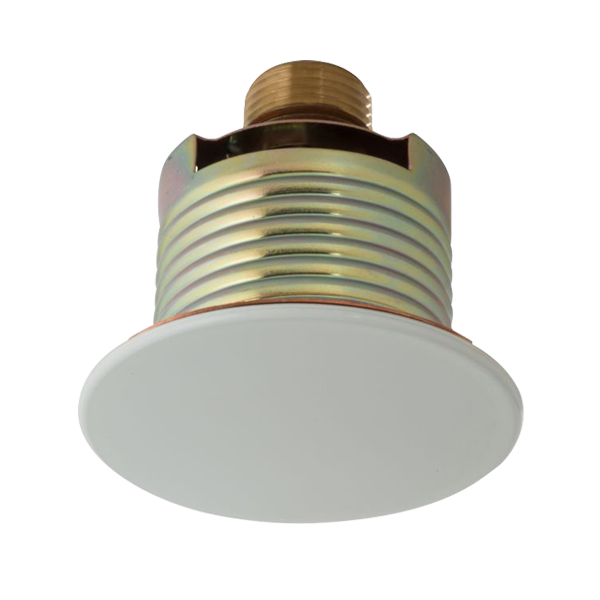

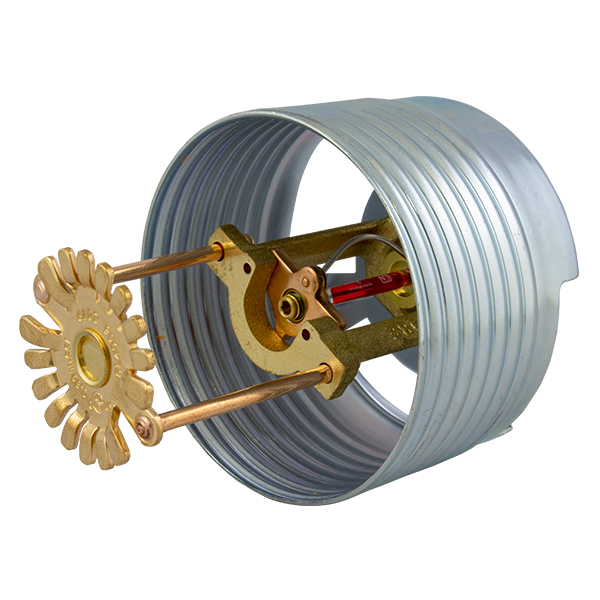

Concealed SR / QR / and Residential “ The Inch”
- cULus approved
- Water working pressure rating – 175psi
- Factory tested hydrostatically to 500psi
- Maximum low temperature glass bulb rating is -67°F (-55°C)
- Strong wrap around pin, drop in design
- Available in 155° and 200° temperatures
- Chrome and white plates in 2 sizes
- Supplied with 2-3/4” diameter plate unless otherwise requested
- Specify temperature and finish
| Part# | Description |
|---|---|
| G5606 | Quick response |
| G5653 | Standard response |
| G4906 | Residential |
Additional Files
Click on the buttons inside the tabbed menu:
Sales Sheets
Other Documents

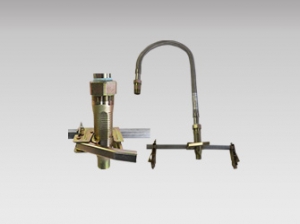

Flexible Sprinkler Drops – Braided
- Great for both new and retrofit applications
- Use with suspended ceiling, drywall, institutional, and industrial applications
- Lengths available 28”, 48”, 60”, 72”
- Both 1/2” and 3/4” IPS models
- Stainless tubing (cULus & FM)
- Brackets are pre-assembled and ready to install
- One piece middle bracket – just insert the flex drop
- Rated pressure 175psi
- Use in wet & dry sprinkler systems
- Reduce labour costs
- No need to make sprinkler drops
- Great for congested ceiling spaces
- Hassle free last minute ceiling adjustments
| Part# | Length | Reducer NPT |
|---|---|---|
| 305031B | 28" | 1/2” |
| 305048B | 48" | 1/2” |
| 305060B | 60" | 1/2” |
| 305072B | 72" | 1/2” |
| 305032B | 28" | 3/4” |
| 305049B | 48" | 3/4” |
| 305061B | 60" | 3/4” |
| 305073B | 72" | 3/4” |
Additional Files
Click on the buttons inside the tabbed menu:
Sales Sheets
Other Documents
Air Gap Drains
- For Apollo RP (Reduced Pressure) series backflows.
| Part# | Size | Description |
|---|---|---|
| 8051100AG | 1/2 to 1 | 4A series |
| 805115AG | 1 1/4 to 1 1/2 | 4A RP Series |
Additional Files
Click on the buttons inside the tabbed menu:
Techanical Informaiton
Other Documents

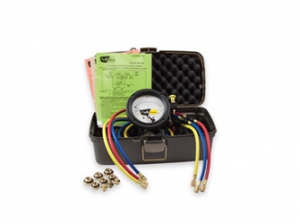

Backflow Test Kit
- The test kit is suitable for testing all reduced-pressure and double check backflow preventers
- The test kit includes three or five soft-seated needle valves with replaceable seats, a differential pressure gauge, a thermoplastic gauge body, color-coded hosed with integral filters, a line-pressure gauge, all required adapter fittings, a flexible strap, laminated test procedures, and a durable carrying case.
| Part# | Size |
|---|---|
| 80TK | 5 valve kit |
| 80TK3 | 3 valve kit |
Additional Files
Click on the buttons inside the tabbed menu:
Techanical Informaiton
Other Documents

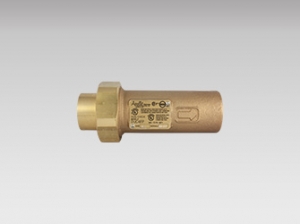

Backflow – Residential In-Line by Apollo
- Backflow Preventer for Residential Fire Sprinkler Systems
- Prevents backflow by either backpressure or back siphonage cross-connection between potable water lines and substances
- Apollo 4N Series
- cUL approved, CSA approved
- 6” overall length
- Complies with NFPA 13D
| Part# | Size |
|---|---|
| 8050100R | 1” |
| 8050114R | 1-1/4” |
