- Aluminum baffle plates 4" or 5 1/2" diameters
- Used in rack storage applications

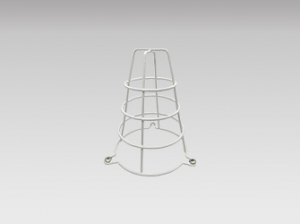

- Heavy wire construction
- Mounts directly to ceiling or wall with wire eyelets
- Use with two-piece pendant (skirt & cup) escutcheons
- Use with dry head applications
- 4 ½” wide by 6” deep
- White powder coated finish
- Fasteners not included

- Inspector Test & Drain Valve
- Brass valve in 1” & 1-1/4” sizes
- Test, Drain, and shut off valve
- Teflon Seats
- Acrylic Sight Glass
- Orifice size 1/2” is standard and stocked units
- cULus and FM approved

Additional Files

Click on the buttons inside the tabbed menu:

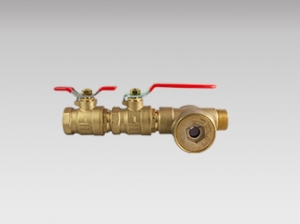

Inspector Test and Shut Off 8087100



- Provides the test and express drain function in a multi story installation, for a wet fire sprinkler system
- Tamper resistant test orifice, sight glass
- Rated 300 PSI
- Orifice size 1/2” is standard and stocked units
- Other orifice sizes are available

Additional Files

Click on the buttons inside the tabbed menu:

AGF Testandrain 85112 Model 1000

AGF Testandrain 85212 Model 1011A

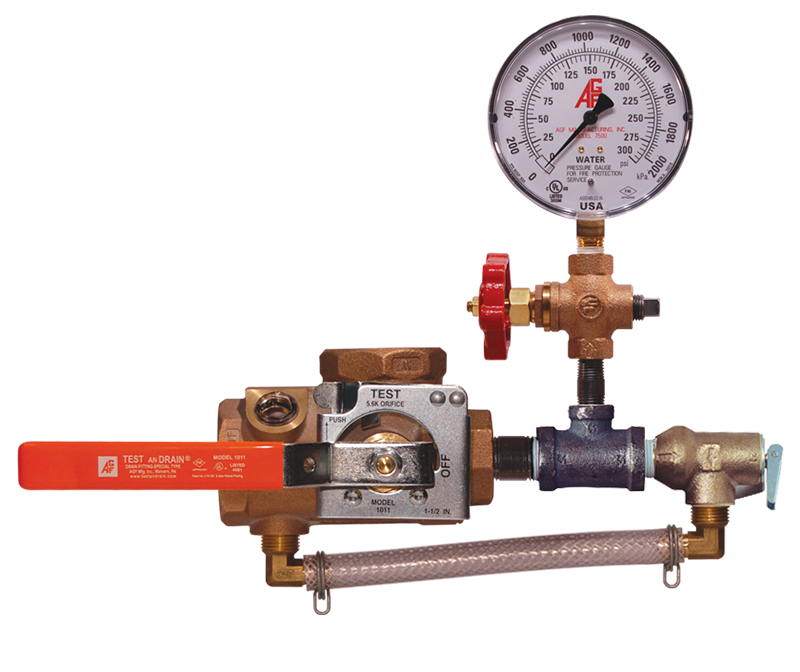

AGF Testandrain 85212T Model 1011T

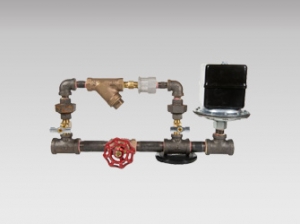

- Automatic, field-adjustable devices that control the on-off cycling of and air compressor
- Utilized in applications where it is desirable or necessary to use a small no-tank mounted compressor that is to be dedicated to the system to be pressurized
- The H-2 and H-3 monitor system pressure and automatically cycle the air compressor on and off to maintain system pressure within the preset limits
- Model H-2 used with air compressors with an unloader as an integral part.
- As pressure on the system side of the 1/4” check valve drops, the air pressure switch contacts close, causing the compressor to start
- Model H-3 is used when the primary air compressor is not equipped with an unloader device

Additional Files

Click on the buttons inside the tabbed menu:

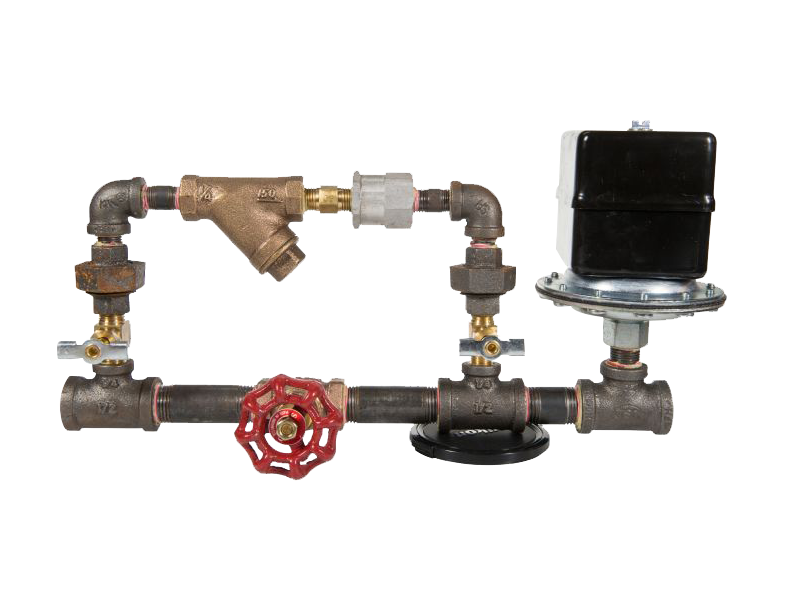

Air Maintenance Device G320595 Model H-2 and Model H-3

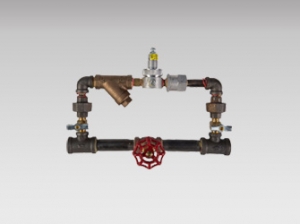

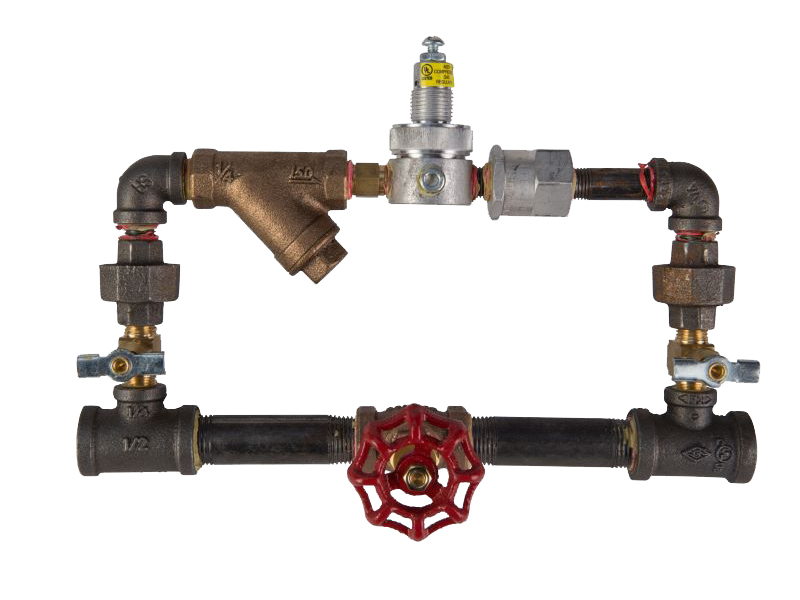

- Globe's Model H-1 Air Pressure Maintenance Device is an automatic, field-adjustable device of the pressure reducing type
- The H-1 is utilized in applications where there is a compressed air (or nitrogen) source which is at a higher pressure than the desired system pressure

Additional Files

Click on the buttons inside the tabbed menu:

Air Maintenance Device G320585 Model H-1

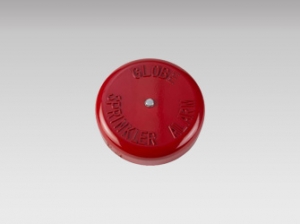

- Hydraulically operated indoor and outdoor alarms
- Used with alarm check, dry pipe, deluge, and preaction valves to sound a local alarm
- Eliminates the need for an electrical alarm
- Provides an audible fire alarm both inside and outside the building
- Suitable for mounting to any type of rigid wall to thickness up to 16” (406.4mm)
- Includes a listed and approved strainer for use in the alarm line
- Fabricated from corrosion resistant cast aluminum
- The polymer drive bearings do not require lubrication

Additional Files

Click on the buttons inside the tabbed menu:

Water Motor Gong G325500

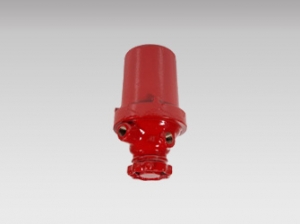

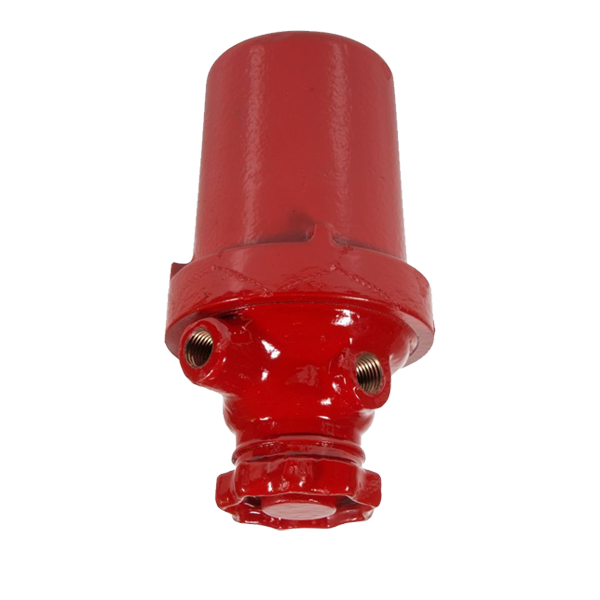

- Used to reduce the time lag normally associated with the opening of a Dry Pipe Valve after one or more system sprinklers have operated
- Accelerates the opening of the Dry Pipe Valve
- Monitors the air pressure in a Dry Pipe System
- The Anti-Flooding Device is included with orders for the Model C

Additional Files

Click on the buttons inside the tabbed menu:

Accelerator G300400

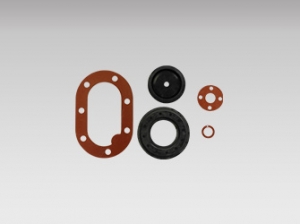

- All kits are used with model H-1, H-2 and H-3

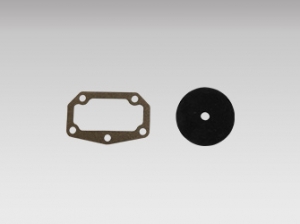

- Each kit includes a rubber disc and cover gasket

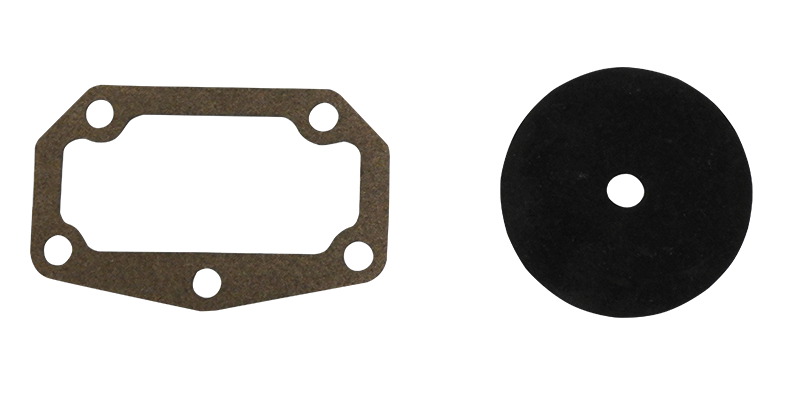

- Gasket kits for the repair of Globe's dry pipe valves
