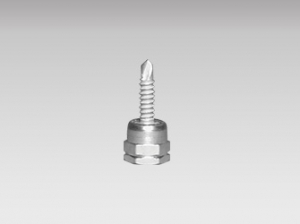

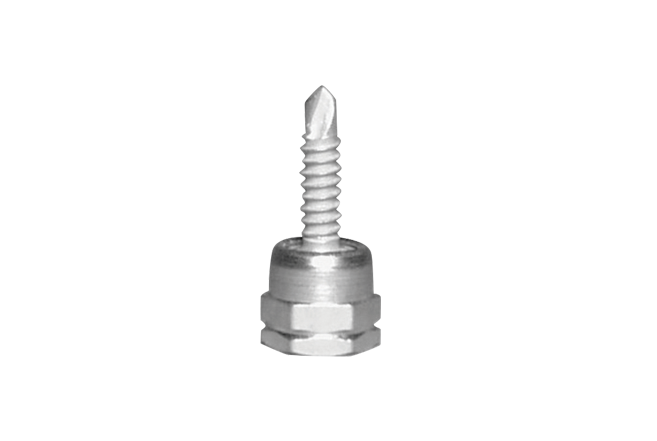

- Use driver 109914S
- Rod size is 3/8”

- Use driver 109914
- Rod size is 3/8”

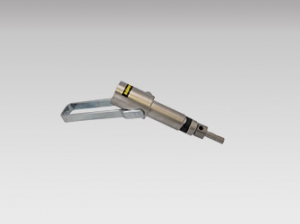

- The SAMMY X-Press It™ Installation Tool assures a perfect installation every time offering the added convenience of one-tool efficiency, just drill and drive in SECONDS

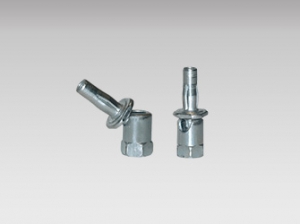

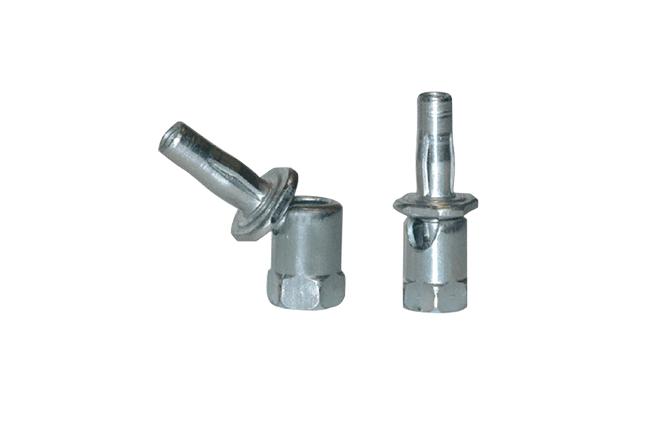

- Sammy X-Press now available in swivel style (same as details above)
- Used in metal deck (20) or Purlin (35)
- Hang Plumb to 89° to Z-Purlin and to 45° in metal deck
- Accepts 3/8” rod

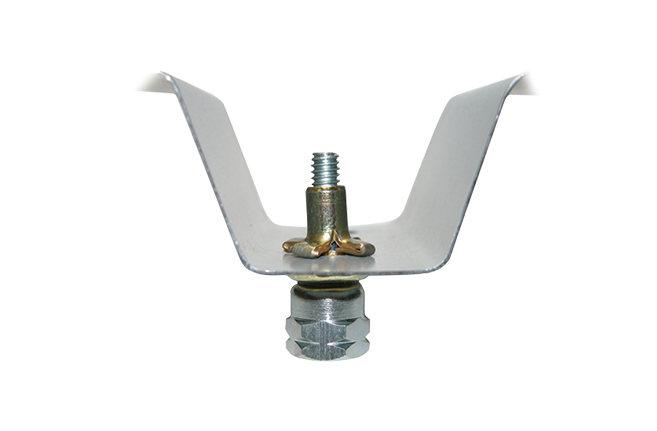

- The Sammy X-Press™ System is designed to provide direct attachment of threaded rod in metal deck (22-16 gauge) and thin gauge purlin (18-16 gauge), while providing reduced installation costs in terms of time and materials
- In many instance, access to the backside of the installed fastener is prohibited by panel liner or roofing insulation
- Sammy X-Press Anchors deliver the performance installers require without the use of a retaining nut
- The patent-pending X-Press Anchors consist of a threaded fastener and expandable sleeve
- The Xpress System features an easy-to-install anchor with expanding anchoring strips that collapse to prevent pullout after installation
- The XP 20 provides 750 pounds of pullout in 22-20 gauge metal deck and will support a 2” pipe
- The XP 35 delivers 1250 pounds of pullout in 18-16 gauge purlin and supports a 3½” pipe

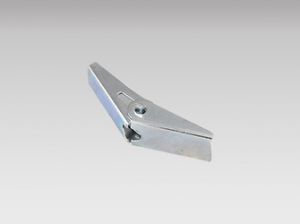

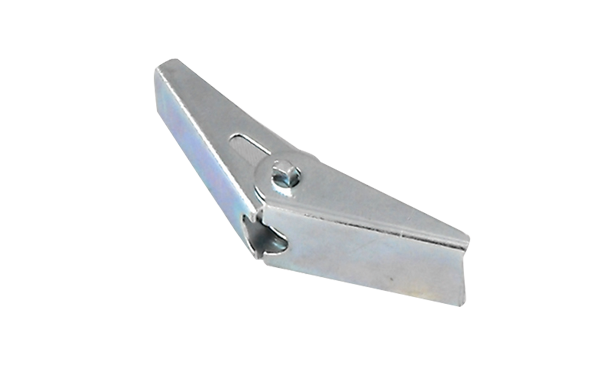

- Toggle wing for 3/8” rod

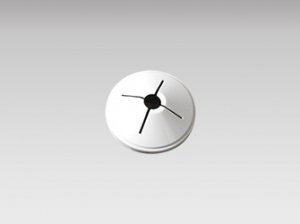

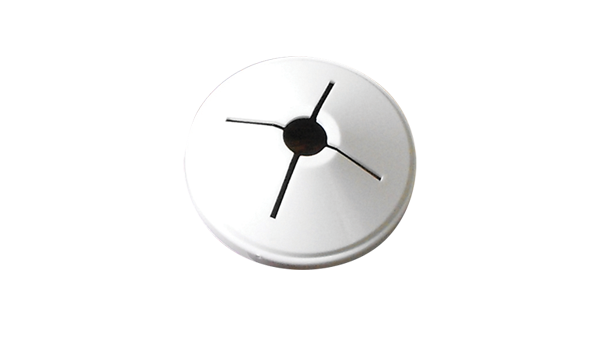

- Plastic rod button for 3/8” rod
- Use in wood construction
- White finish

- For attachments to wood or steel beams

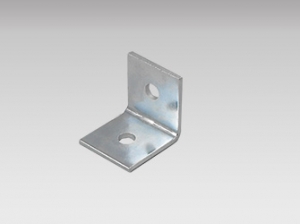

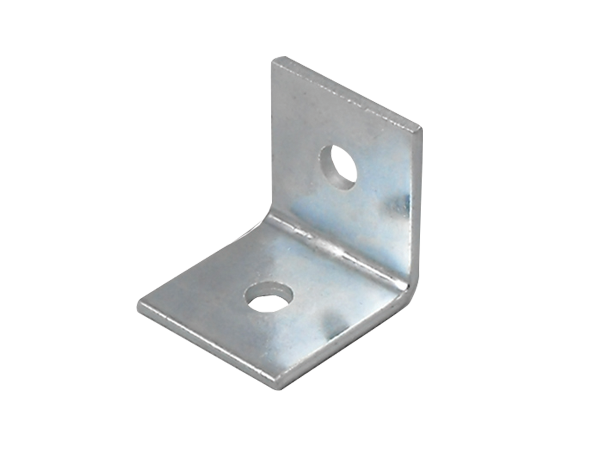

- 2” x 1/2” bracket
- Hole to clear threaded rod

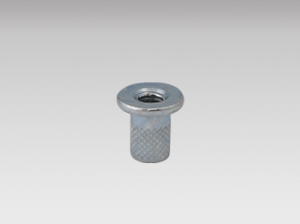

- Insert nuts plated for ring hangers
