FDC- Exposed 90° Angle
- cUL / UL / FM approved
- Body only
- All brass
- Single clapper, 2½” swivels, 4” IPS Outlet
| FDC-Straight body part# | Thread Specifications |
|---|---|
| 7096CSA | Canadian Standard Thread |
| 7096NSST | Nova Scotia Thread |
| 7096QST | Quebec Standard Thread |
| 7096WCT | Western Canada Thread |
| 7096BCT | British Columbia Thread |
| 7096NBT | New Brunswick Thread |

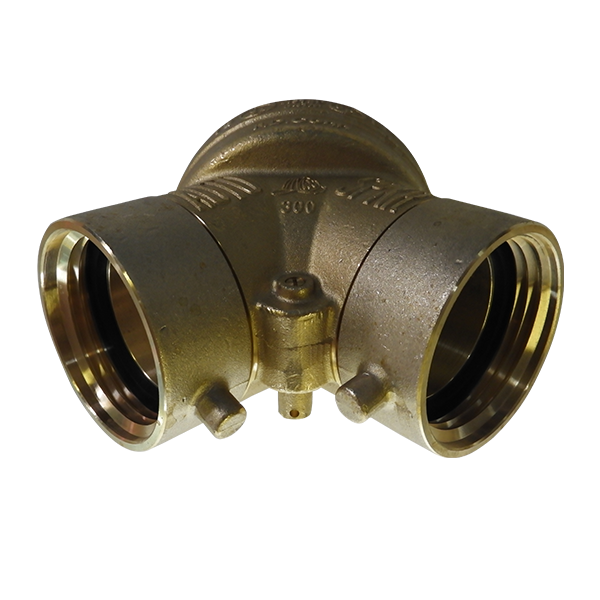

FDC Exposed Straight Body
- cUL / UL / FM approved
- Body only
- All brass
- Single clapper, 2½” swivels, 4” IPS Outlet
| Part# | Thread Specifications |
|---|---|
| 7095CSA | Canadian Standard Thread |
| 7095NSST | Nova Scotia Thread |
| 7095QST | Quebec Standard Thread |
| 7095WCT | Western Canada Thread |
| 7095BCT | British Columbia Thread |
| 7095NBT | New Brunswick Thread |

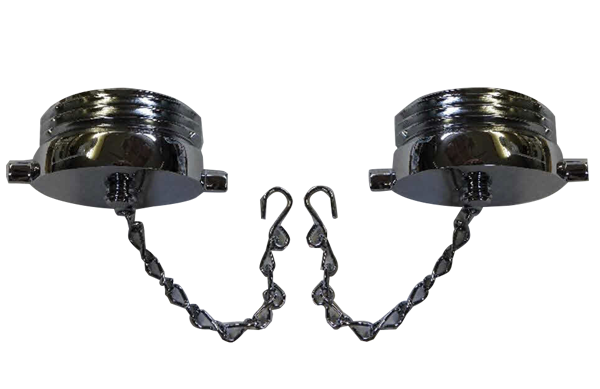

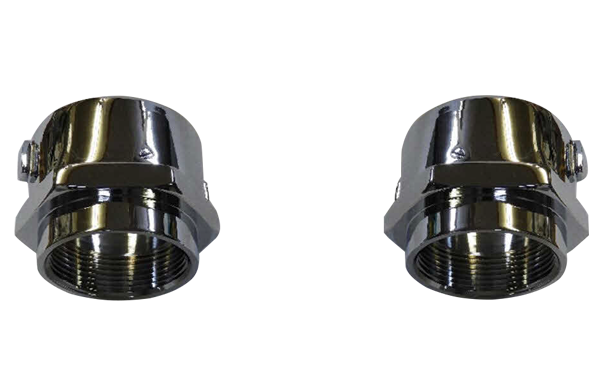

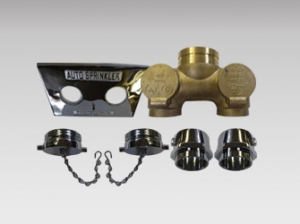

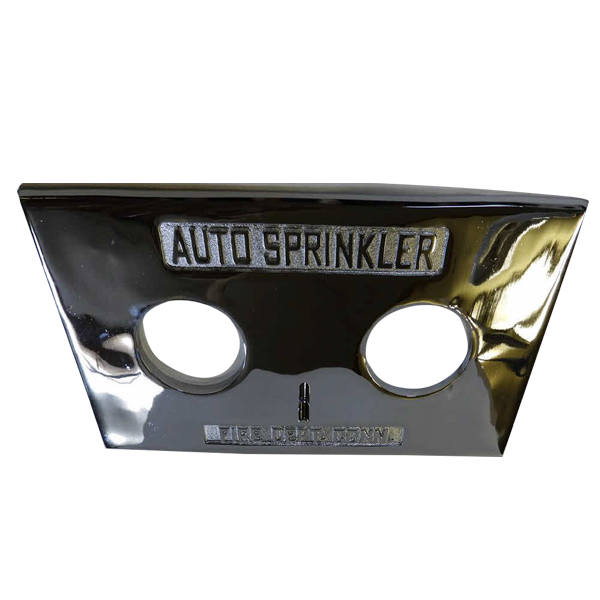

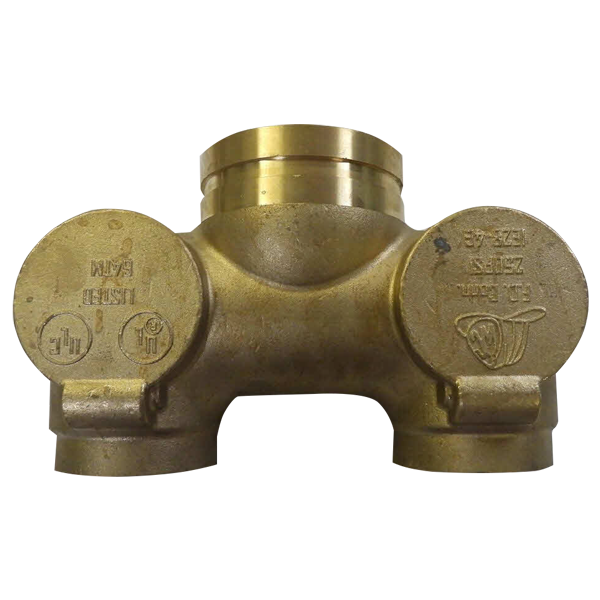

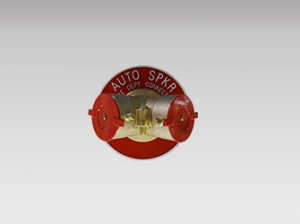

FDC – Concealed Connections
- Grooved body with plate snoots and caps
- Brass or chrome finish
- Straight or angled body
- Double clapper design
| Part# | Body Type X | Thread XXX | Rear Plate X | Finish X | |||
|---|---|---|---|---|---|---|---|
| 70229 | 1 | Straight | CSA | 1 | Standpipe | B | Brass |
| 2 | Angle | NSST | 2 | Auto sprinkler | C | Chrome | |
| QST | 3 | Standpipe / auto sprinkler | |||||
| WCT | 4 | Gicleurs auto | |||||
| BCT | 5 | Gicleurs canalisation | |||||
| NBT | 6 | Canalisatoin d' indcendie | |||||

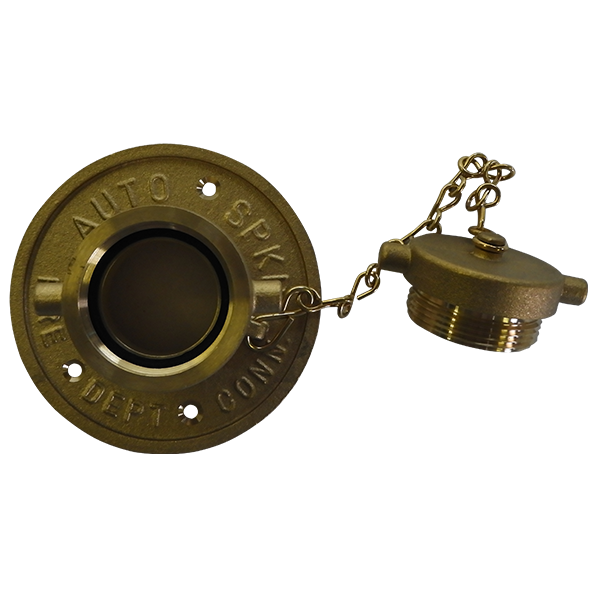

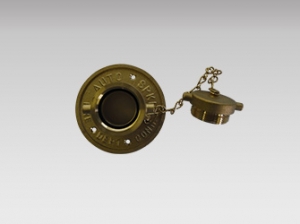

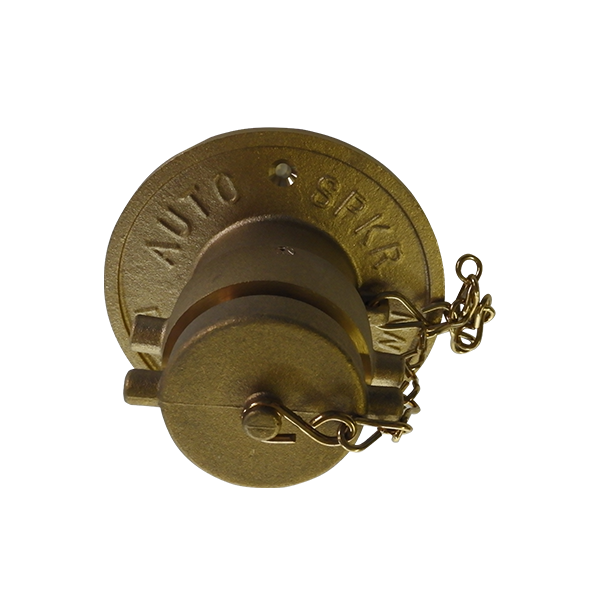

FDC – Single Residential
- FDC Single Flush Siamese 1-1/2”
- Rear plate
- Snoot
- Swivel
- Plug
- Brass
| Part# | Description |
|---|---|
| 70176112 | FDC single flush Siamese |

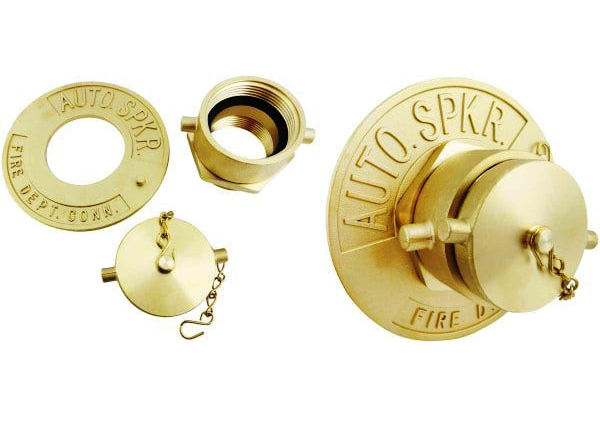

FDC – Single Connection Complete
- Single Flush Siamese – 2-1/2”
- Rear plate
- Snoot
- Swivel
- Plug
| BRASS part# | Thread Specifications |
|---|---|
| 70196CSA | Canadian Standard Thread |
| 70196NSST | Nova Scotia Thread |
| 70196QST | Quebec Standard Thread |
| 70196WCT | Western Canada Thread |
| 70196BCT | British Columbia Thread |
| 70196NBT | New Brunswick Thread |
| CHROME part# | Thread Specifications |
| 70195CSA | Canadian Standard Thread |
| 70195NSST | Nova Scotia Thread |
| 70195QST | Quebec Standard Thread |
| 70195WCT | Western Canada Thread |
| 70195BCT | British Columbia Thread |
| 70195NBT | New Brunswick Thread |

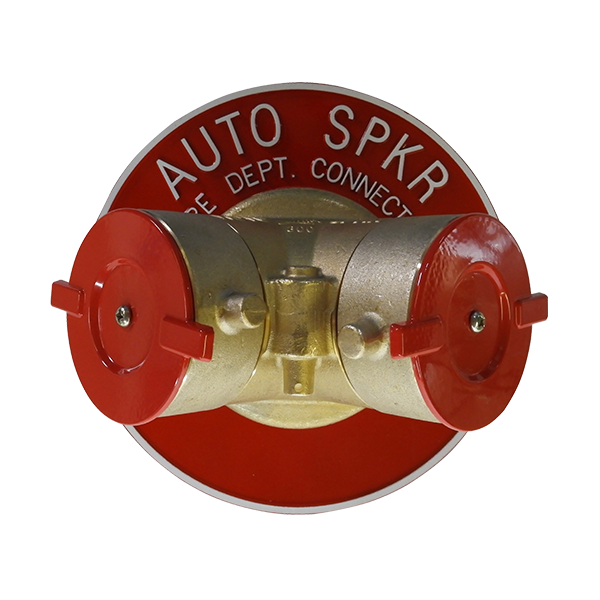

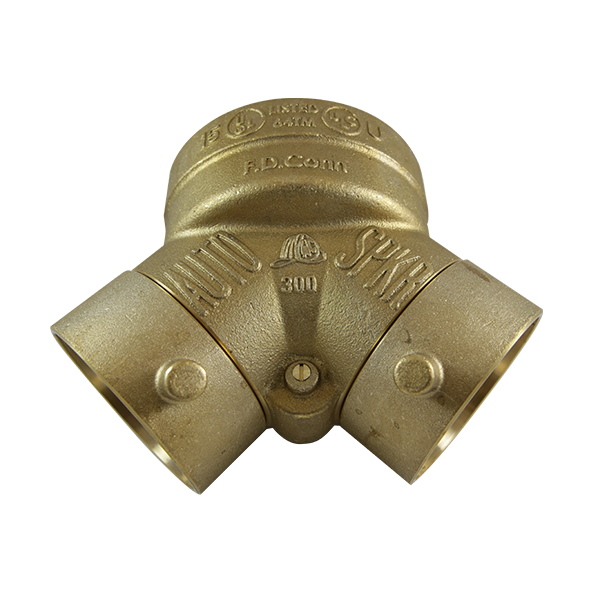

FDC – Exposed Complete
- CUL / UL / FM approved
- Complete: FDC Body, J-bolt FDC caps ( aluminum ), Auto Sprinkler Pleat Plate (aluminum)
- All brass
- Single clapper
- 2½” swivels
- 4” IPS outlet
- Also available with brass plugs
- Also available chrome plated
| FDC-Straight body part# | Thread Specifications |
|---|---|
| 7095CSA - K | Canadian Standard Thread |
| 7095NSST - K | Nova Scotia Thread |
| 7095QST - K | Quebec Standard Thread |
| 7095WCT - K | Western Canada Thread |
| 7095BCT - K | British Columbia Thread |
| 7095NBT - K | New Brunswick Thread |
| FDC-90° angle body part# | Thread Specifications |
| 7096CSA – K | Canadian Standard Thread |
| 7096NSST – K | Nova Scotia Thread |
| 7096QST – K | Quebec Standard Thread |
| 7096WCT – K | Western Canada Thread |
| 7096BCT – K | British Columbia Thread |
| 7096NBT – K | New Brunswick Thread |

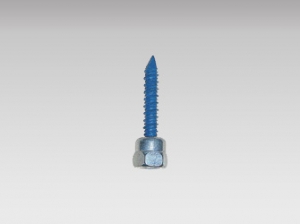

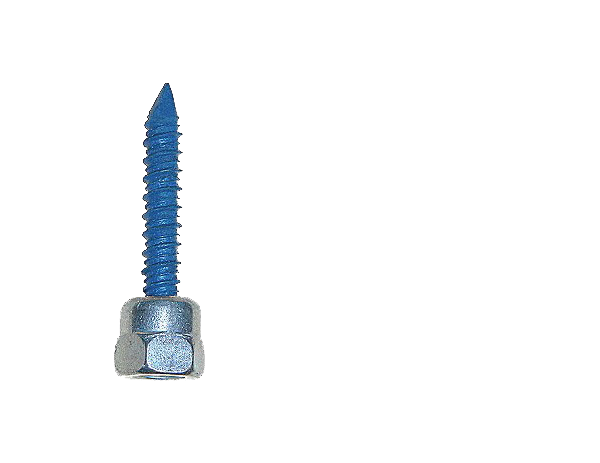

Sammy Screws for Concrete Vertical Mount
- Self tapping for concrete, pre-drilling
- Rod size is 3/8”
| Part# | Model type | Size |
|---|---|---|
| 1087134 | CST-20 | 5/16” x 1-3/4” |
Additional Files
Click on the buttons inside the tabbed menu:
Techanical Informaiton
Other Documents

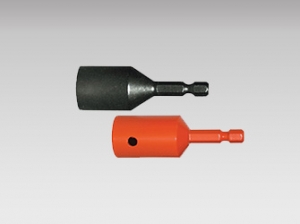

Sammy Tools
- Sammy adapters for drills
| Part# | Description |
|---|---|

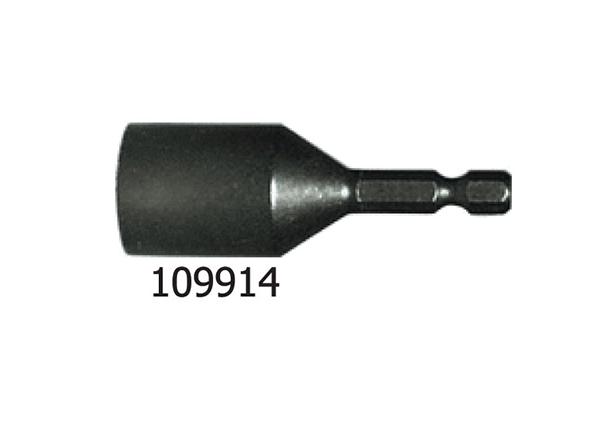

| 109914 | for vertical screws |

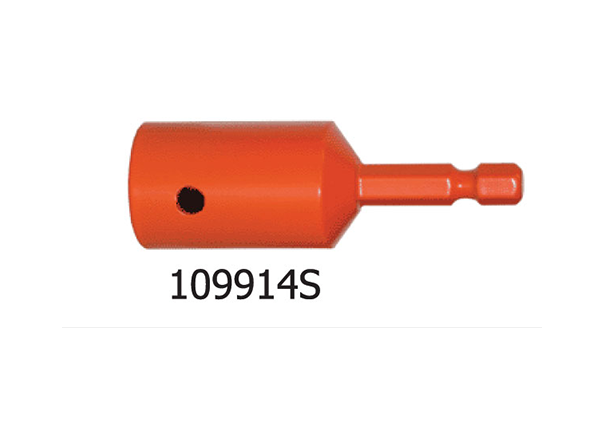

| 109914S | for sidewinder screws |
| 109915 | SDA bit for Hilti™ drill (use with Concrete SAMMY's) |
| 109916 | Sleeve tool (Tapcon method) |
Sammy Swivel for Wood Horizontal Mount
- Self threading in wood
- Rod size is 3/8”
| Part# | Model type | Size |
|---|---|---|
| 1089302 | SWG-20 | 1/4” x 2” |

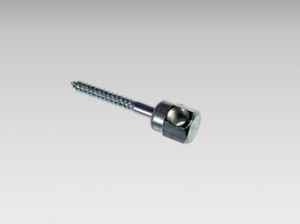

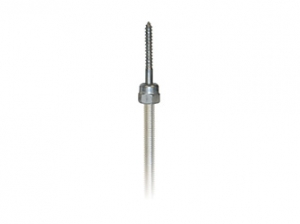

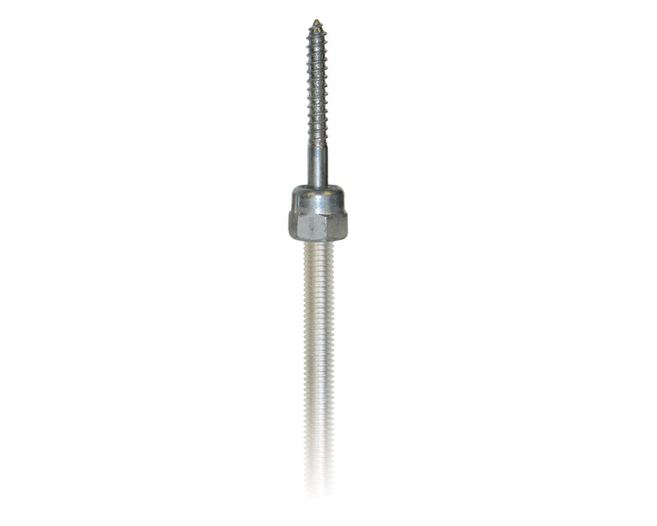

Sammy Screws for Wood Vertical Mount
- Self threading in wood
- Rod size is 3/8”
| Part# | Model type | Size |
|---|---|---|
| 1088200 | GST-20 | 1/4” x 2” |
| 1088300 | GST-30 | 1/4” x 3” |
