FURNAS

- Designed for starting and stopping single-phase fractional horsepower motors
- Terminal design – box terminals provide easy access for writing
- Small size – open starter fits GEM or handy box

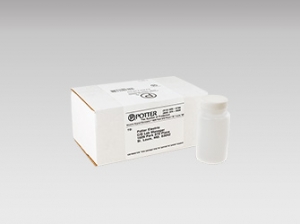

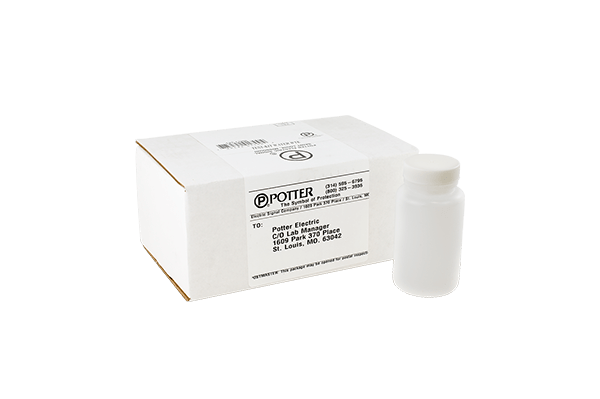

- Have POTTER test the water supply of the sprinkler system
- Meets requirements of NFPA 13, 2002 4.3
- 5 groups of bacteria tested

Additional Files

Click on the buttons inside the tabbed menu:

Water Test Kit 404099 WTK



- Service pressure: up to 250 PSIG
- Temperature range: 40°F to 120°F (4.5°C to 49°C)
- Coupon Holders: Qty. (2) included

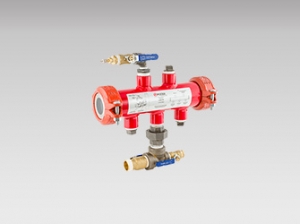

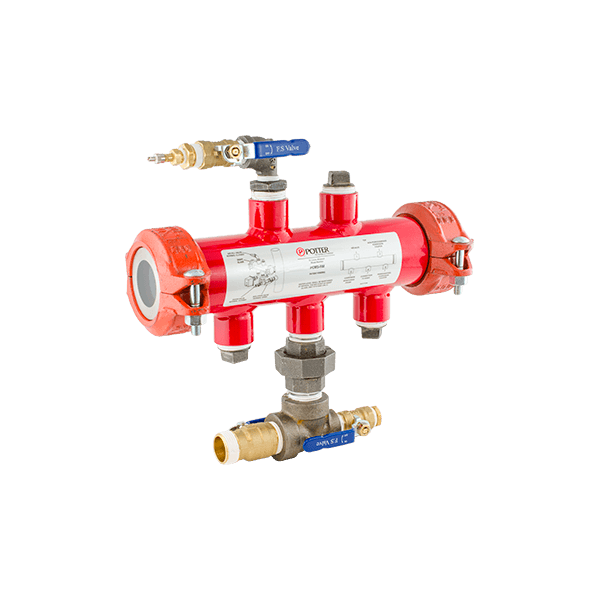

- Designed to simulate conditions within the fire sprinkler system
- The coupon rack can be isolated from the fire sprinkler riser and easily accessed for servicing and monitoring of test specimens (corrosion coupons) without interruption to fire protection

Additional Files

Click on the buttons inside the tabbed menu:

Corrosion Monitoring Station 404042 PCMS-RM



- Service pressure: up to 175 PSIG
- Temperature range: 40°F to 120°F (4.5°C to 49°C)
- Air Vent: 1” NPT inlet 3/32” Orifice
- Water Shutoff Valve: Activation indicated by red pop-up tap on the shutoff valve
- Single set of NC contacts rated 24V AC/DC @2A ( contacts open upon activation of shutoff valve) and 6' Lg. Wiring harness supplied for supervision of shutoff valve

Additional Files

Click on the buttons inside the tabbed menu:

Automatic Air Release 404091 PAAR-B



Automatic Air Release 404041

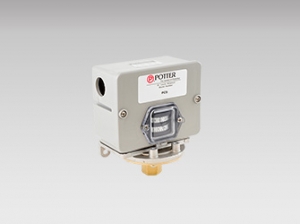

- The model PCS is an Adjustable Deadband Pressure Switch with independent set and reset points which are adjustable throughout the entire operating range of the switch
- The minimum deadband (minimum span between set and reset points) may be obtained at any point in the operating range of the switch
- A change in pressure greater than the high setting will reposition the switch mechanism to open or close a single snap-action electrical switch
- This control device is designed for use as an operating control in applications sensing air, water, or any fluid not harmful to the pressure connection, diaphragm or nitrile pressure-sealing o-ring.
- Where an operating control would result in personal injury and-or loss of property, it is the responsibility of the installer to add devices (safety, limit controls) that protect against, or systems (alarm, supervisory systems) that warn of control failure
- Not intended for applications in explosive environments or use with hazardous fluids
- Adjustable Pressure Switch
- Minimum deadband: 12 PSIG
- Proof pressure: 400 PSIG
- Factory setting: 90/60 PSIG

Additional Files

Click on the buttons inside the tabbed menu:

Pressure Switch – Adjustable Deadband 404085 PCS-300-1B

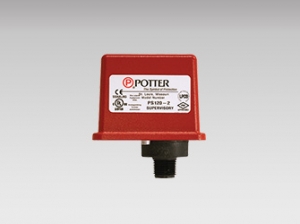

- Pressure actuated switches designed primarily to detect a 10 PSI increase and/or decrease from normal system pressure in automatic fire sprinkler systems
- Typical applications are air pressure supervision in systems with excess pressure
- PS120-1A: Operates on decrease at 110 PSI
- PS120-2A: Operates on increase at 130 PSI and on decrease at 110 PSI
- Pressure Range: 10-175 PSI

Additional Files

Click on the buttons inside the tabbed menu:

Switch – Pressure, Excess Pressure 4071120 PS120-1A



Potter Pressure Switch SS

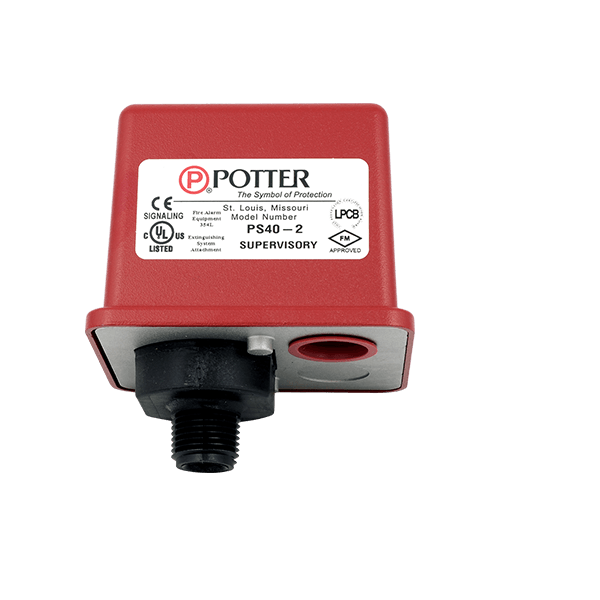

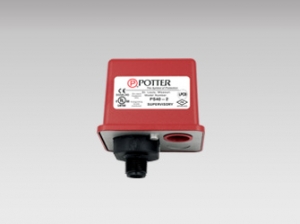

- Pressure actuated switches designed primarily to detect a 10 PSI increase and/or decrease from normal system pressure in automatic fire sprinkler systems
- Typical applications are air pressure supervision in dry pipe systems and pressure supervision of pressure tanks, air supply or water supply
- PS40-1A: Operates on decrease at 30PSI
- PS40-2A: Operates on increase at 50 PSI, and on decrease at 30 PSI
- Pressure Range: 10-175 PSI

Additional Files

Click on the buttons inside the tabbed menu:

Switch – Pressure, Dry Systems 407140 4071402A



Potter Pressure Switch SS



- The Potter PS10A Series Pressure Actuated Switches are designed for the detection of a waterflow condition in automatic fire sprinkler systems of particular designs such as wet systems with alarm check valves or dry pipe systems
- May also be used to provide a low pressure supervisory signal
- They may be adjusted to operate on pressure between 4 and 20 PSI

Additional Files

Click on the buttons inside the tabbed menu:

Switch – Low Pressure, Wet Systems 407110 PS10-1A



Potter Pressure Switch SS

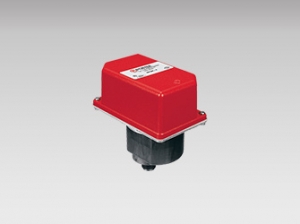

- Pressure operated switch with an adjustable, instantly recycling pneumatic retard to prevent false alarms due to water pressure variation
- The EFSR-F is connected into the alarm port of a wet sprinkler system alarm check valve
- Pressure Adjustments: Factory adjusted to operate between 4 and 8 PSI on rising pressure
- Maximum System Pressure: 175 PSI
- Contact Ratings: Two Sets of SPDT (Form C)

Additional Files

Click on the buttons inside the tabbed menu:

Switch – Waterflow Alarm 404076 WFSR-F
