Nuts & Washers

Nut Part#	Washer Part#	Fender Washer Part#	Size
1099141P	1099151	1099152	3/8”
1099142P	1099153	1099163	1/2”
1099143P	1099154	–	5/8”
1099144P	1099155	–	3/4”

Published in Nuts & Bolts

Tagged under

Be the first to comment!

Wednesday, 22 April 2020 03:33

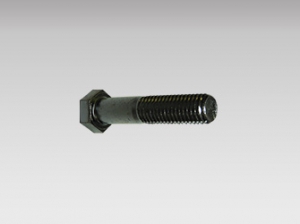

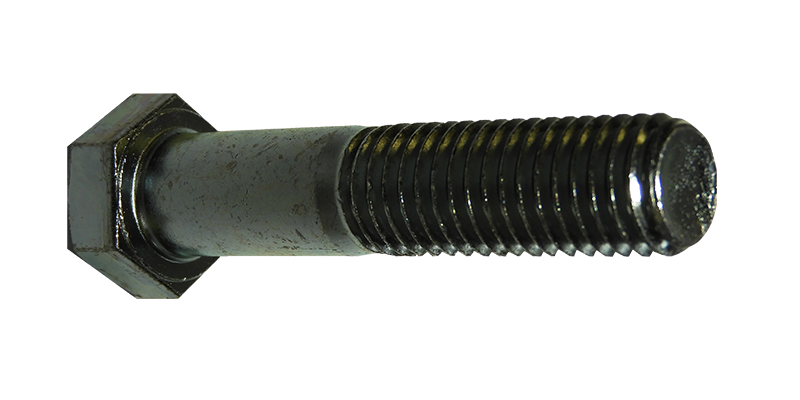

Hex Bolts

Part#	Size
1099131	1/2” x 2”
1099132	1/2” x 2-1/2”
1099133	5/8” x 2-1/2”
1099134	5/8” x 3”
1099135	5/8” x 3-1/2”
1099136	3/4” x 3”
1099137	3/4” x 3-1/2”

Published in Nuts & Bolts

Tagged under

Be the first to comment!

Wednesday, 22 April 2020 03:31

- Size Range: 3/4” thru 2” CPVC pipe
- Surface Finish: Electro-zinc plated
- Support CPVC pipe of the vertical face of structural or composite wood joists with a minimum of 3/8” web thickness
- Flared edges protect the CPVE piping

Part#	Size
109S012A	3/4”
109S016A	1”
109S020A	1-1/4”
109S024A	1-1/2”
109S032A	2”

Additional Files

Click on the buttons inside the tabbed menu:

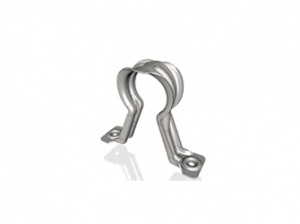

Stand-Off Two Hole Strap

Pipe Strap 2 hole for CPVC

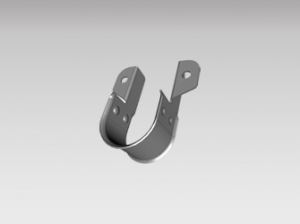

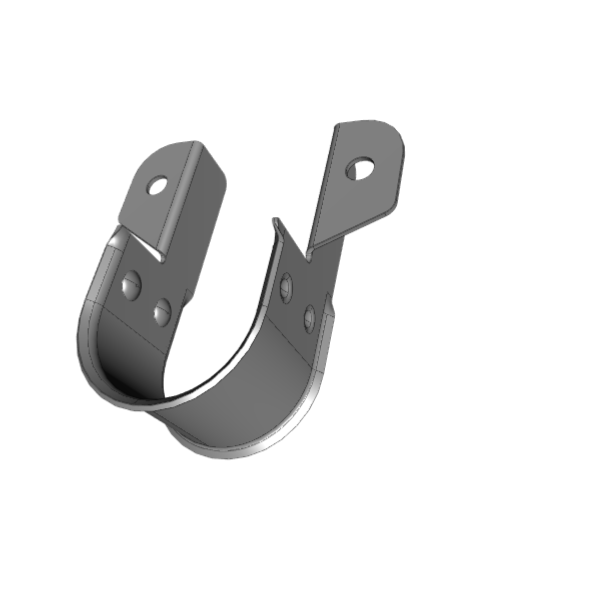

Side-Mount Strap

- Size Range: 3/4” thru 2” CPVC pipe
- Surface Finish: Electro-zinc plated
- Support CPVC pipe horizontally from top, bottom or side of beam
- Retainer dimples secure hanger to pipe during installation
- Flared edges protect the CPVE piping

Part#	Size
1099034	3/4”
1099100	1”
1099114	1-1/4”
1099112	1-1/2”
1099200	2”

Additional Files

Click on the buttons inside the tabbed menu:

Side-Mount Strap

Pipe Strap 2 hole for CPVC

Pipe Strap 2 hole for CPVC

- Size Range: 3/4” thru 2” CPVC pipe
- Surface Finish: Electro-zinc plated
- Support CPVC pipe horizontally from top, bottom or side of beam
- Retainer dimples secure hanger to pipe during installation
- Flared edges protect the CPVE piping

Part#	Size
1098034	3/4”
1098100	1”
1098114	1-1/4”
1098112	1-1/2”
1098200	2”

Additional Files

Click on the buttons inside the tabbed menu:

Techanical Informaiton

Pipe Strap 2 hole for CPVC

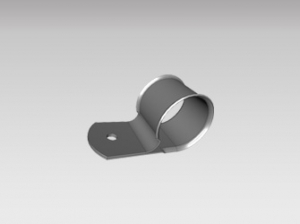

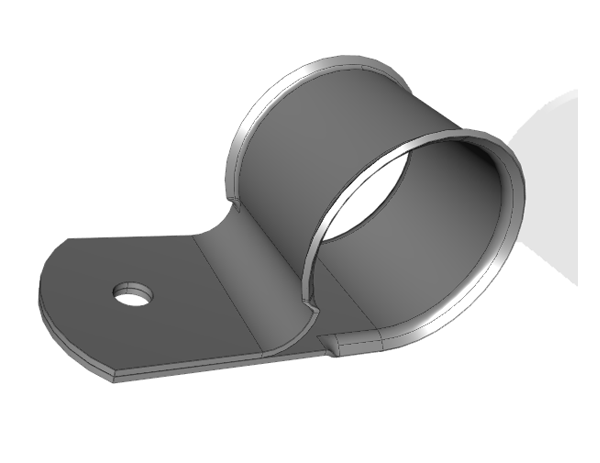

One-Hole Wrap Around Strap

- Recommended for the suspension of CPVC sprinkler pipes in fire protection applications
- Flared edges protect the CPVE piping
- UL® listed for fire protection applications

Part#	Size
1097034	3/4”
1097100	1”
1097114	1-1/4”
1097112	1-1/2”
1097200	2”

Additional Files

Click on the buttons inside the tabbed menu:

One-Hole Wrap Around Strap

Pipe Strap 2 hole for CPVC

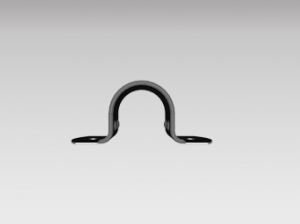

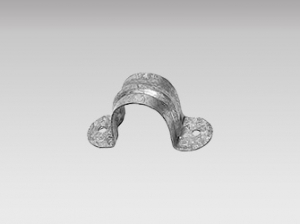

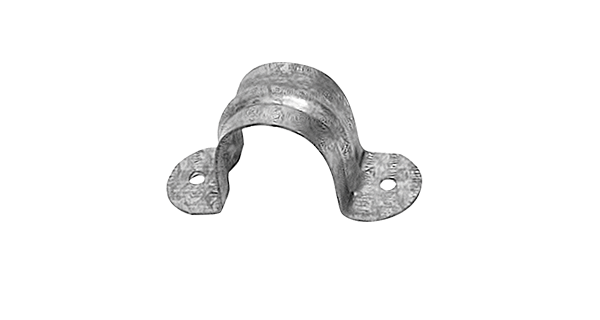

Pipe Strap, 2 Hole

- Galvanized

Part#	IPS size
1614	1/2”
1615	3/4”
1616	1”
1617	1-1/4”
1618	1-1/2”
1619	2”
1620	2-1/4”
1621	3”
1622	4”

Published in Pipe Straps

Tagged under

Be the first to comment!

Wednesday, 22 April 2020 03:13

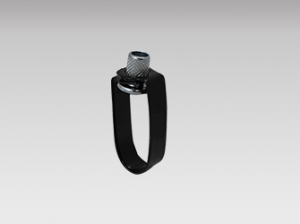

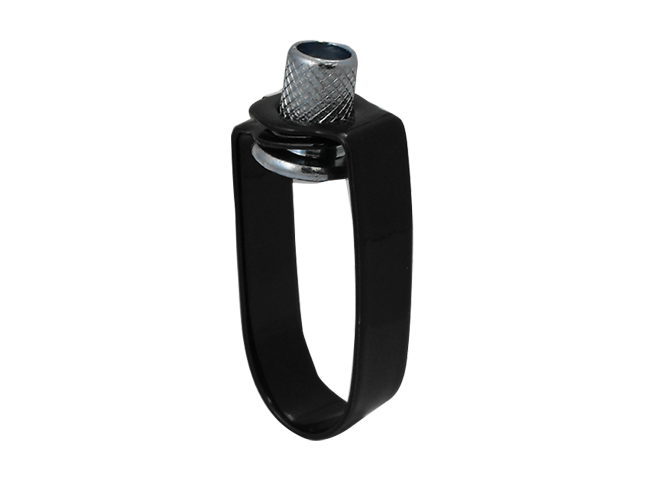

Hanger – Sprinkler Ring

- Sprinkler hangers are UL, FM, ULC approved
- Available to 8” IPS
- Also available for copper pipe and PVC coated

Part#	Size (pipe)
1091012	1/2”
1091034	3/4”
1091100	1”
1091114	1¼”
1091112	1½”
1091200	2”
1091212	2½”
1091300	3”
1091400	4”
1091500	5”
1091600	6”
1091800	8”

Additional Files

Click on the buttons inside the tabbed menu:

Hanger – Sprinkler Ring 1091012

Sales Sheets

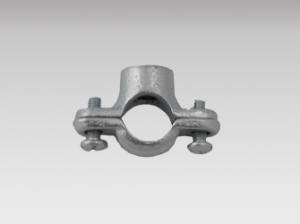

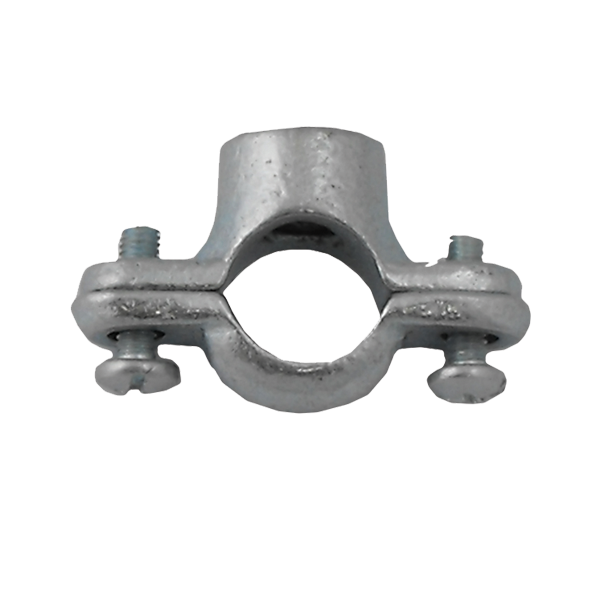

Hanger – Split Ring

- Split ring hangers are available from 1/2” to 2”
- Available for 2 screw, or hinged type

2 screw part#	Hinged part#	Size (pipe)
1092038	1092038H	3/8”
1092012	1092012H	1/2”
1092034	1092034H	3/4”
1092100	1092100H	1”
1092114	1092114H	1¼”
1092112	1092112H	1½”
1092200	1092200H	2”
